Frequent Questions about Benchmark Dose Software (BMDS)

On this page

Extract BMDS from its Zip File Before Running

One of the most common BMDS support issues is caused by trying to run BMDS 3 from within its zip file.

When run from within the zip file, BMDS cannot exchange data and results between the application and its supporting dynamic link libraries (DLLs). This leads to interrupted file operations and frequent error messages.

To operate properly, BMDS must be extracted from the downloaded zip file into its own directory.

Top of Page


Sorting Individual Response Data Before Modeling

If the user is having difficulty running datasets of individual response data, try sorting the doses in increasing numeric order.

Top of Page


Understanding the Gray and Blue Cells in Dataset Rows

Grayed cells for datasets cannot be edited. They indicate acceptable data types in the sequence that BMDS requires for a proper model analysis.

The blue cells underneath can be edited if the dataset employs different variable names for these data types.

For example, the gray cell labeled "Dose" means that BMDS expects a dosage amount to be entered in that column of data. The blue cell underneath the "Dose" cell can be customized by the user to be "mg," "ml," or other dosage amount used for that study.

Top of Page


Intermittent incompatibility between MS_combo model and 64-bit Excel

Some users have experienced failure of the BMDS Multitumor (MS_combo) model for runs of multiple datasets.

The failures seem to be related to an incompatibility between MS_combo and 64-bit Excel.

In the meantime, if you need to perform perform analyses of multiple datasets with the Multitumor (MS_combo) model , BMDS Announcement #71 includes several options for working around this issue.

Top of Page


Reinstalling Excel May Solve Random Performance Issues

Some users have reported unusual error messages (such as “File not found: cmodels.dll”) or problems running analyses despite having a stable Microsoft Excel installation. In most cases, re-installing Excel solves these random problems.

For BMDS, we recommend a desktop version of Microsoft Excel for Windows with macros enabled (visit the Microsoft support site for information on enabling Excel macros). We recommend using the Office 365 or standalone Microsoft Office installation methods rather than installing via the Microsoft Store.

Top of Page


Specifying a Background Dose of Zero for Frequentist Dichotomous Models

This option is currently supported only for the frequentist dichotomous models.

If you specify the background dose to be zero , the resulting maximum-likelihood estimation (MLE) background parameters can sometimes still vary slightly above zero.

Top of Page


If Checkboxes or Other Controls Display Oddly

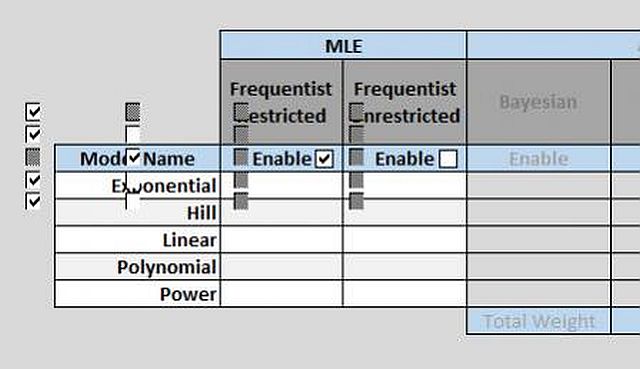

On first opening BMDS, you may see checkboxes or other onscreen artifacts offset from the main spreadsheet, as shown in the following screenshot.

On opening BMDS, checkboxes and other onscreen controls may display as offset and irregularTo correct this problem, select the "Display Settings" button at the bottom of the Excel window and then select "Optimize for Compatibility." You will need to restart Excel for the changes to take effect.

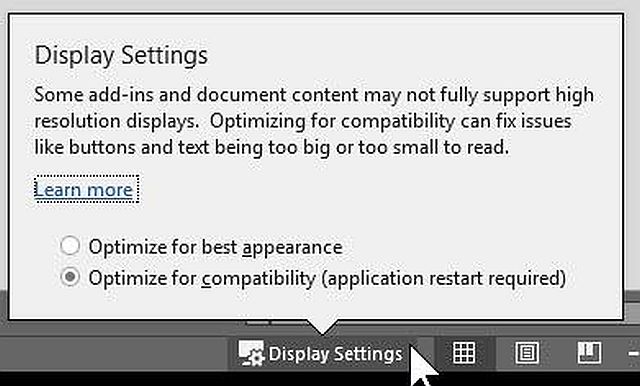

To correct display errors, select Display Settings and then Optimize for compatibility

Top of Page


Specify Single Dataset/Option Combinations for Word Reports

It is recommended that, when using the Word Report option, specify only single dataset/option combinations to speed report creation.

Top of Page


Resolving Slow Performance

Some activities, such as generating the Results workbook, may slow the performance of other applications on your computer.

A possible workaround is to limit the number of combinations of option sets, models, and datasets that BMDS is analyzing.

An all-purpose fix is to reboot the computer to clear the RAM and to run as few applications as possible while BMDS is processing.
