Climate Change Indicators: Drought

Key Points

• Average drought conditions across the nation have varied over time. The 1930s and 1950s saw the most widespread droughts, while the last 50 years have generally been wetter than average (see Figures 1 and 2). Over the entire period shown in Figures 1 and 2, the overall trend has been toward wetter conditions, with the SPEI increasing at a rate of about 0.04 units per decade (see Figure 2).
• Large and consistent decreases in the SPEI have been observed throughout the western United States. Decreases have been especially prominent in southwestern states such as California, Arizona, and New Mexico. The eastern United States—in particular the Midwest and Northeast—has experienced generally wetter conditions (see Figure 3).
• In terms of scale and duration, the droughts of the 1930s Dust Bowl era remain the most extreme in the historical record (see Figures 1 and 2).
• Over the period from 2000 through 2020, roughly 20 to 70 percent of the U.S. land area experienced conditions that were at least abnormally dry at any given time (see Figure 4). The years 2002–2003 and 2012–2013 had a relatively large area with at least abnormally dry conditions, while 2009–2011, 2016–2017, and 2019 had substantially less area experiencing drought.
• During the latter half of 2012, more than half of the U.S. land area was covered by moderate or greater drought (see Figure 4). In several states, 2012 was among the driest years on record.⁶  See Temperature and Drought in the Southwest for a closer look at recent drought conditions in one of the hardest-hit regions.

Background

There are many definitions and types of drought. Meteorologists generally define drought as a prolonged period of dry weather caused by a lack of precipitation that results in a serious water shortage for some activity, population, or ecological system. Drought can also be thought of as an extended imbalance between precipitation and evaporation.

As average temperatures have risen because of climate change, the Earth’s water cycle has sped up through an increase in the rate of evaporation from soil and transpiration from plants. An increase in evapotranspiration makes more water available in the air for precipitation, but contributes to drying over some land areas, leaving less moisture in the soil. As the climate continues to change, many historically wet areas are likely to experience increased precipitation (see the U.S. and Global Precipitation indicator) and increased risk of flooding (see the Heavy Precipitation indicator), while historically dry areas are likely to experience less precipitation and increased risk of drought.¹  As a result, since the 1950s, some regions of the world have experienced longer and more intense droughts, particularly in southern Europe and West Africa, while other regions have seen droughts become less frequent, less intense, or shorter (for example, in central North America).²

Drought conditions can negatively affect agriculture, water supplies, energy production, human health, and many other aspects of society. The impacts vary depending on the type, location, intensity, and duration of the drought. For example, effects on agriculture can range from slowed plant growth to severe crop losses, while water supply impacts can range from lowered reservoir levels and dried-up streams to major water shortages. Prolonged droughts pose a particular threat to indigenous populations because of their economic and cultural dependence on land and water supplies. Warming and drought can threaten medicinal and culturally important plants and animals and can reduce water quality and availability, making tribal populations particularly vulnerable to waterborne illnesses.  Lower streamflow and groundwater levels can also harm ecosystems more broadly, by harming plants and animals and increasing the risk of wildfires (see the Wildfires indicator).

About the Indicator

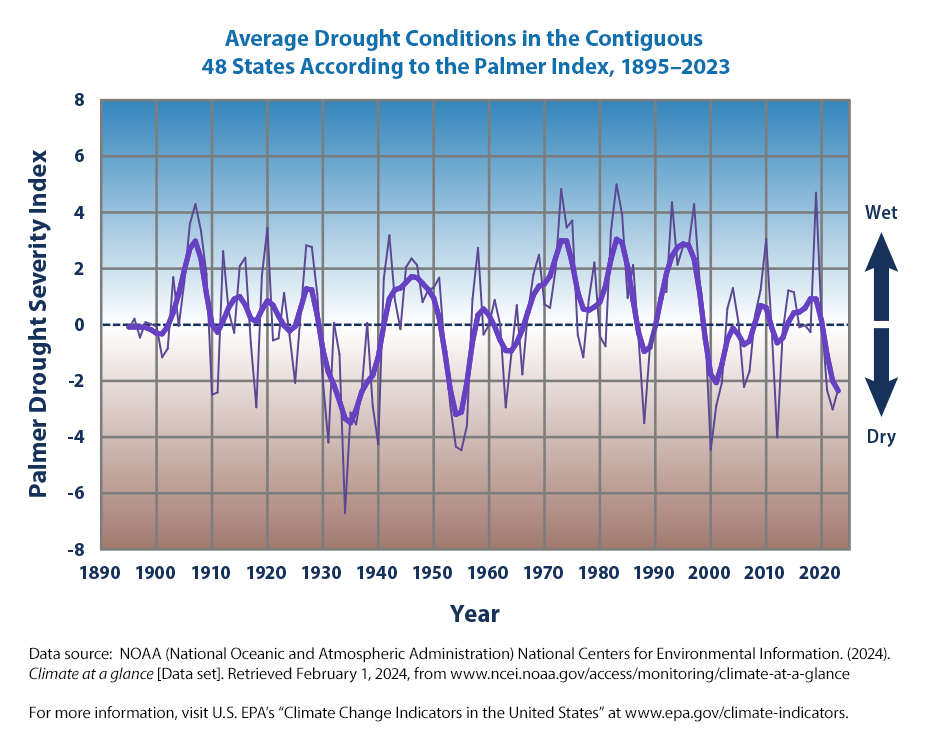

During the 20^th century, many indices were created to measure drought severity by looking at precipitation, soil moisture, stream flow, vegetation health, and other variables.⁴ Figure 1 shows annual values of the most widely used index, the Palmer Drought Severity Index, which is calculated from precipitation and temperature measurements at weather stations. An index value of zero represents the average moisture conditions observed between 1931 and 1990 at a given location. A positive value means conditions are wetter than average, while a negative value is drier than average. Index values from locations across the contiguous 48 states have been averaged together to produce the national values shown in Figure 1.

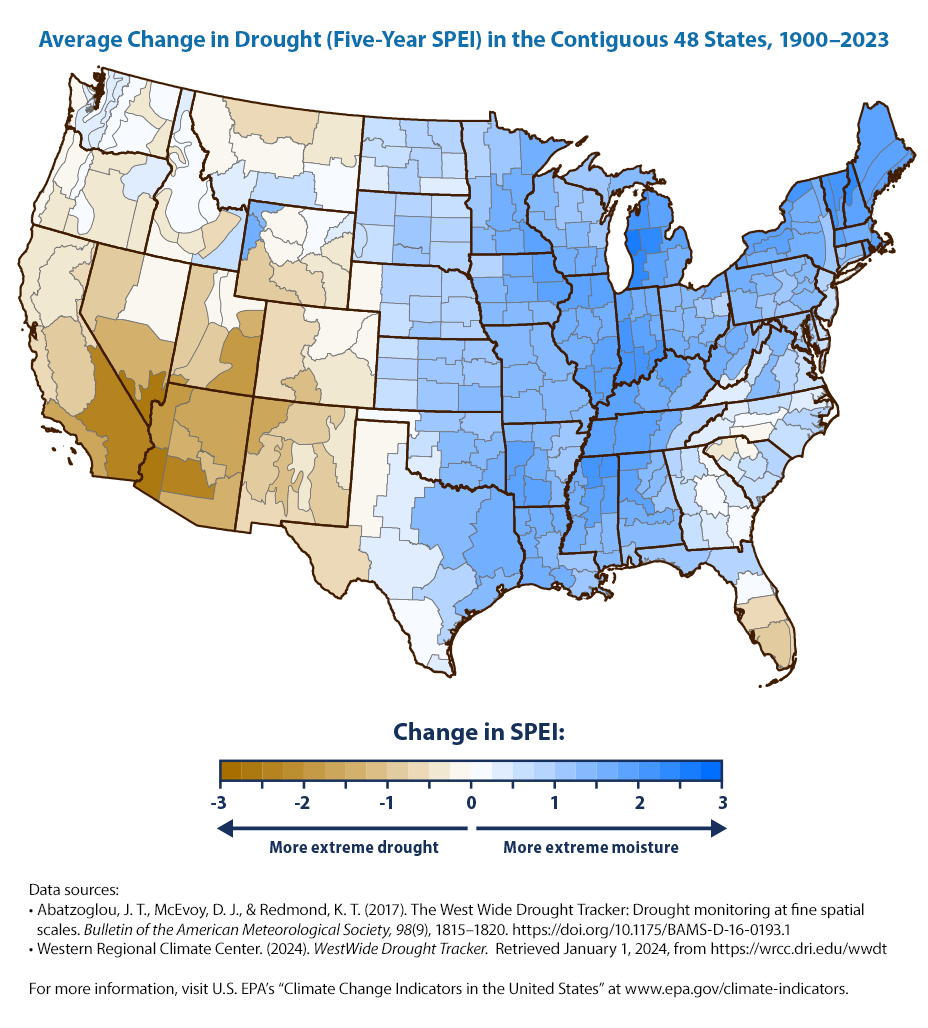

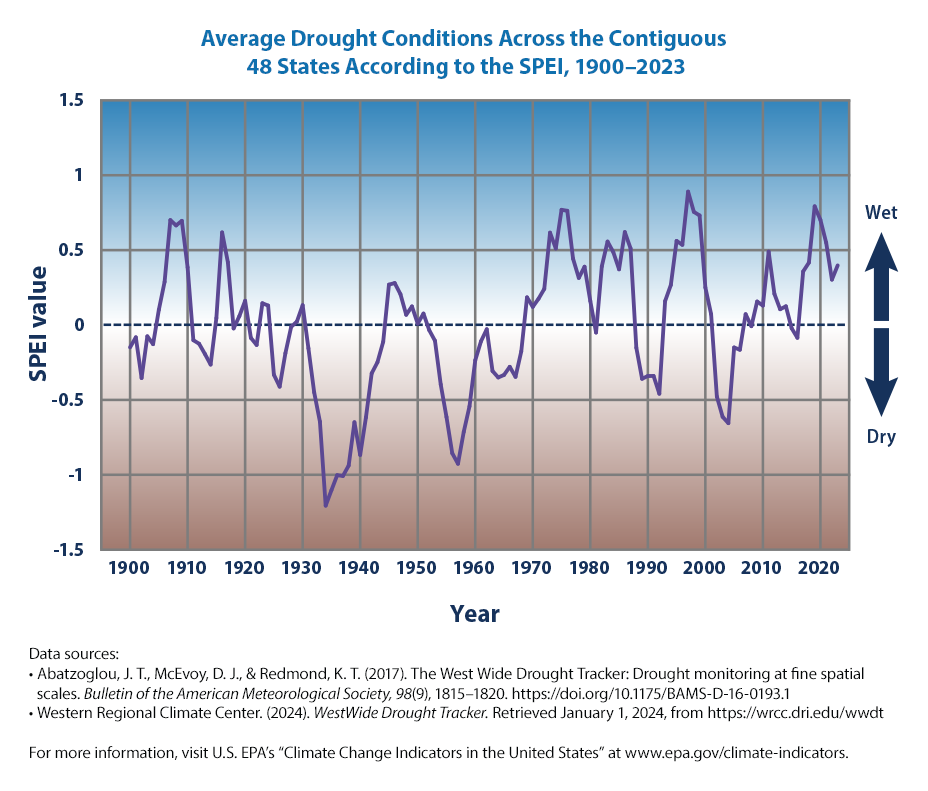

Figures 2 and 3 show the Standardized Precipitation Evapotranspiration Index (SPEI), which measures the combination of water supply (precipitation) and atmospheric water demand (evapotranspiration, which is based on temperature) to determine whether a certain area is experiencing extreme drought, extreme moisture, or conditions in between. This combination of inputs is useful because it allows the SPEI to consider how droughts might affect agriculture and ecosystems, which depend on a balance between water supply and demand. SPEI values between -1 and 1 are considered near normal for a given area, whereas values below -1 signify drought and values above 1 signify unusually moist conditions. Because drought conditions fluctuate naturally, it is helpful to look at average conditions over several years to explore how drought is connected to long-term climate change.⁵  For this reason, this indicator presents average SPEI values over consecutive five-year periods. For example, the 2019 SPEI score for a particular area is actually the average of 60 months of SPEI data, from July 2014 through June 2019.

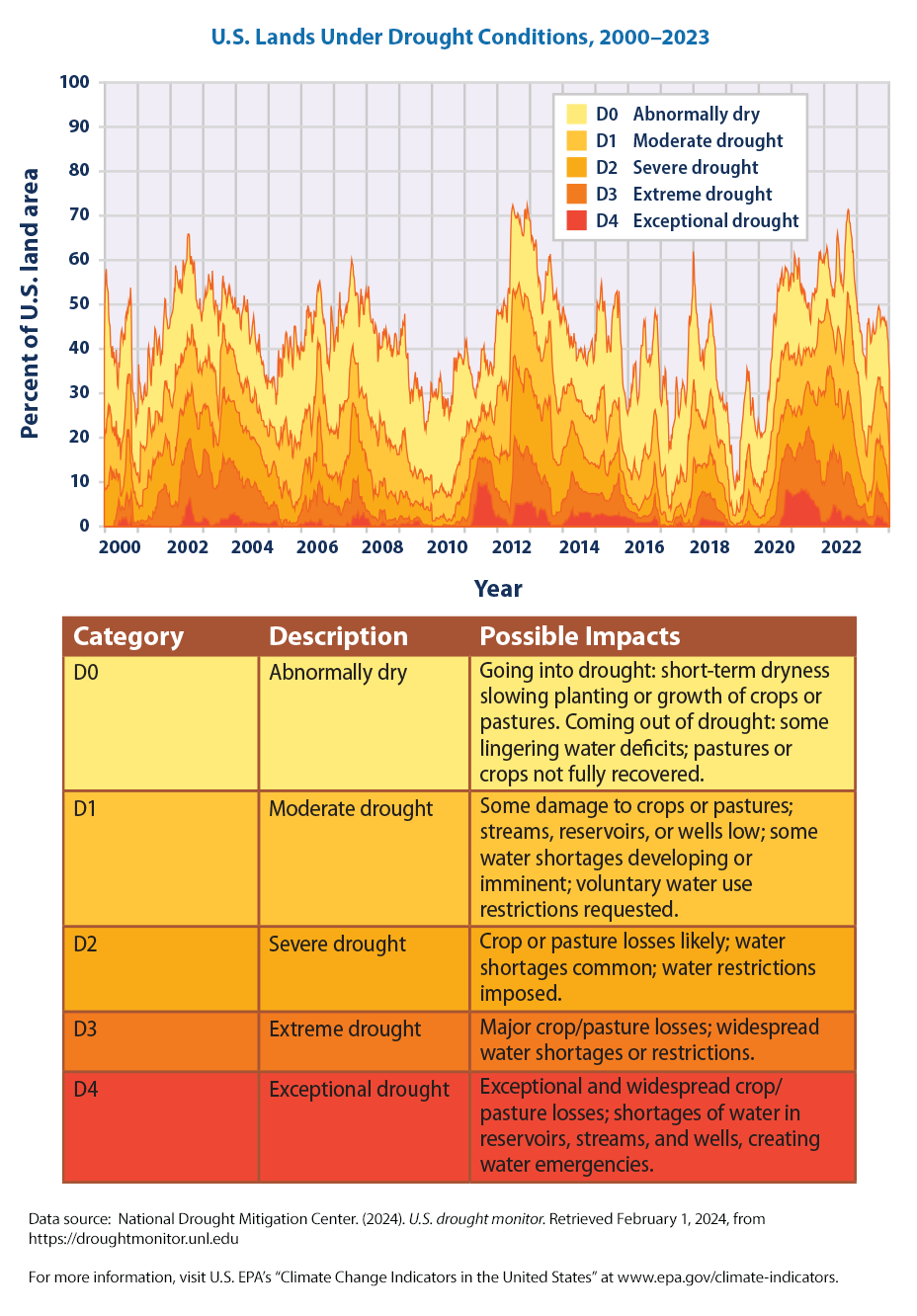

For a more detailed perspective on recent trends, Figure 4 shows an index called the Drought Monitor, which is based on several indices (including Palmer), along with additional factors such as snow water content, groundwater levels, reservoir storage, pasture/range conditions, and other impacts. The Drought Monitor uses codes from D0 to D4 (see table below Figure 4) to classify drought severity. This part of the indicator covers all 50 states and Puerto Rico.

About the Data

Indicator Notes

Natural variability in the Earth’s climate means that drought trends may vary slightly when measured over different time periods. Using a multi-year index as shown in Figures 2 and 3 (five-year SPEI) is relevant for examining climate trends and potential connections to climate change.¹³  Periods with extreme drought conditions (e.g., 1930s) can influence the long-term trends calculated for this indicator.

The SPEI values used for this indicator are based on weighted PRISM data by location.¹⁴  The underlying method for calculating SPEI does not account for variables such as solar radiation, humidity, and wind speed that can all influence drought conditions. As a result, the SPEI shown here is more reflective of the influence of temperature. This is a limitation and potential source of uncertainty in interpreting drought conditions.

The U.S. Drought Monitor (Figure 4) offers a closer look at the percentage of the country that is affected by drought. The period of record for this index is relatively short, however, and thus too short-lived to be used for assessing long-term climate trends or exploring how recent observations compare with historical patterns. With several decades of data collection, future versions of this indicator should be able to paint a more complete picture of trends over time.

Overall, this indicator gives a broad overview of drought conditions in the United States. It is not intended to replace local information that might describe conditions more precisely for a particular region. The national averages in Figures 1 and 2 are particularly limited in this regard, as averaging drought metrics over such a large area can obscure drought extremes occurring at regional scales. Thus, these national graphs might understate the degree to which droughts are becoming more severe in some areas while other places receive more rain as a result of climate change.

Data Sources

Data for Figure 1 were obtained from the National Oceanic and Atmospheric Administration’s National Centers for Environmental Information, which maintains a large collection of climate data online at: www.ncdc.noaa.gov/cag.

Data for Figures 2 and 3 came from the WestWide Drought Tracker, which is a collaboration between the University of Idaho, the Western Regional Climate Center, and the Desert Research Institute. These data are available at: https://wrcc.dri.edu/wwdt/batchdownload.php. The measured index values are derived from Oregon State University’s PRISM Climate Mapping Program. Figures 2 and 3 were constructed using methods described by Vicente-Serrano et al. (2010).¹⁵

Data for Figure 4 were provided by the National Drought Mitigation Center. Historical data in table form are available at: https://droughtmonitor.unl.edu/DmData/DataTables.aspx.

Technical Documentation

• Download related technical information PDF

References

¹ Wehner, M.F., J.R. Arnold, T. Knutson, K.E. Kunkel, and A.N. LeGrande. 2017. Droughts, floods, and wildfires. In: USGCRP (U.S. Global Change Research Program). 2017. Climate science special report: Fourth National Climate Assessment, Volume I. Wuebbles, D.J., D.W. Fahey, K.A. Hibbard, D.J. Dokken, B.C. Stewart, and T.K. Maycock (eds.). https://science2017.globalchange.gov.

² IPCC (Intergovernmental Panel on Climate Change). 2013. Climate change 2013: The physical science basis. Working Group I contribution to the IPCC Fifth Assessment Report. Cambridge, United Kingdom: Cambridge University Press. www.ipcc.ch/report/ar5/wg1.

³ Gamble, J.L., J. Balbus, M. Berger, K. Bouye, V. Campbell, K. Chief, K. Conlon, A. Crimmins, B. Flanagan, C. Gonzalez-Maddux, E. Hallisey, S. Hutchins, L. Jantarasami, S. Khoury, M. Kiefer, J. Kolling, K. Lynn, A. Manangan, M. McDonald, R. Morello-Frosch, M.H. Redsteer, P. Sheffield, K. Thigpen Tart, J. Watson, K.P. Whyte, and A.F. Wolkin. 2016. Chapter 9: Populations of concern. In: The impacts of climate change on human health in the United States: A scientific assessment. U.S. Global Change Research Program. https://health2016.globalchange.gov.

⁴ Heim, R.R. 2002. A review of twentieth-century drought indices used in the United States. B. Am. Meteorol. Soc. 83(8):1149–1165.

⁵ Abatzoglou, J., D. McEvoy, and K.T. Redmond. 2017. The West Wide Drought Tracker: Drought monitoring at fine spatial scales. B. Am. Meteorol. Soc. 98:1815–1820.

⁶ NOAA (National Oceanic and Atmospheric Administration). 2013. State of the climate: Drought: December 2012. Accessed July 2013. www.ncdc.noaa.gov/sotc/drought/2012/12.

⁷ NOAA (National Oceanic and Atmospheric Administration). 2021. Climate at a glance. Accessed March 2021. www.ncdc.noaa.gov/cag.

⁸ WestWide Drought Tracker. 2021. Western United States—60 month SPEI. Accessed March 2021. https://wrcc.dri.edu/wwdt.

⁹ Daly, C., M. Halbleib, J.I. Smith, W.P. Gibson, M.K. Doggett, G.H. Taylor, J. Curtis, and P.A. Pasteris. 2008.  Physiographically-sensitive mapping of temperature and precipitation across the conterminous United States. Int. J. Climatol. 28:2031–2064.

¹⁰ WestWide Drought Tracker. 2021. SPEI 60 month. Accessed March 2021. https://wrcc.dri.edu/wwdt.

¹¹ Daly, C., M. Halbleib, J.I. Smith, W.P. Gibson, M.K. Doggett, G.H. Taylor, J. Curtis, and P.A. Pasteris. 2008.  Physiographically-sensitive mapping of temperature and precipitation across the conterminous United States. Int. J. Climatol. 28:2031–2064.

¹² National Drought Mitigation Center. 2021. Maps and data. Accessed January 2021. https://droughtmonitor.unl.edu.

¹³ Abatzoglou, J., D. McEvoy, and K.T. Redmond. 2017. The West Wide Drought Tracker: Drought monitoring at fine spatial scales. B. Am. Meteorol. Soc. 98:1815–1820.

¹⁴ Daly, C., M. Halbleib, J.I. Smith, W.P. Gibson, M.K. Doggett, G.H. Taylor, J. Curtis, and P.A. Pasteris. 2008.  Physiographically-sensitive mapping of temperature and precipitation across the conterminous United States. Int. J. Climatol. 28:2031–2064.

¹⁵ Vicente-Serrano, S.M., S. Begueria, and J.I. Lopez-Moreno. 2010. A multi-scalar drought index sensitive to global warming: The Standardized Precipitation Evapotranspiration Index. J. Clim. 23:1696–1718.
