Phase One Residential, Commercial, and Agricultural Soil Sampling Results

On this Page:

Summary of Phase 1 Dioxin Results
Summary of Soil Sampling Results
Results for Semivolatile Organics
Results for Dioxin and Furans
Data Qualifies and Terms Key
Norfolk Southern Data

Summary of Phase 1 Dioxin Results

Based on analysis of soil samples gathered earlier this year, residents can continue to use their properties for normal use, including recreation and gardening. This conclusion is detailed in EPA’s technical memorandum of the Phase 1 Residential, Commercial, Agricultural Soil Sampling Plan, which is now final.
Sampling was conducted at 146 locations in March and April 2023 to determine if there were measurable amounts of chemical compounds deposited in soot and ash from the “vent and burn” operation on February 6. Each location had two samples collected – the first in the top inch of soil and the other from 1 to 6 inches below the surface. The assessment area included the 1-by-2-mile evacuation zone, an extended 1-mile area to the southeast in Pennsylvania, and 25 additional sites considered background.
As first reported at EPA’s April public information session, the vast majority of results fell within typical background ranges for rural and urban/suburban soil. A few outlier data points were associated with commercial/industrial properties or located on the public right-of-way (next to a road/highway).  There was no noticeable difference between surface and at-depth concentrations, indicating that the compounds were likely present before the train derailment.  In conjunction with the on-going full-site characterization plan, EPA will evaluate the few locations with elevated levels to determine if any further assessment is warranted.

Summary of Phase 1 Dioxin Results for the East Palestine Derailment Incident (pdf) (669.05 KB)

Summary of Soil Sampling Results

U.S. EPA (EPA) conducted direct oversight of all Norfolk Southern soil sampling efforts in accordance with the approved Phase 1 Plan, which included property inspections for evidence of soot or ash. These property inspections evaluated whether shallow soil near the derailment site may have been contaminated by smoke particles from the derailment fire and subsequent vent and burn. (See the Inspection and Sampling Locations Section of the Phase 1 Plan for details on sampling locations.)

Phase 1 Plan: Phase I – Preliminary Residential/Commercial/Agricultural Soil Sampling Plan (pdf) (22.32 MB, Rev Apr. 5, 2023)

Event Reconstruction Plume Map

Arcadis – Norfolk Southern Railway Company Phase 1 Residential/Commercial/Agricultural Soil Sampling Report Rev3 (pdf) (23016 pp, 1.47 GB) Large file size

Sample Collection

Norfolk Southern collected surface soil samples and samples of soot and ash from potentially impacted areas. To determine background conditions, they also collected samples from areas not affected by smoke particles. To verify the accuracy of the Norfolk Southern sample analyses, EPA accompanied Norfolk Southern on all property inspections and EPA also collected what are known as “split samples” at several of the locations. A split sample is one collected sample that is then divided into two. One of the samples is then sent to an EPA laboratory and one is sent to a Norfolk Southern laboratory for testing followed by result comparison.

More information on SVOCs and dioxins can be found in EPA's Fact Sheet: Soil Sampling Plan (pdf) (2 MB) (pdf).

Validated Results

The tables below provide validated (final) results for EPA’s splits samples. Results indicate that the vast majority of reportable concentrations of semivolatile organic compounds (SVOCs) and dioxins and furans are consistent with known concentrations for soil in urban and rural areas.

EPA and its partners review and evaluate results, which includes comparing validated results to initial screening levels and known typical concentration levels in soil. Additional actions, including further assessment work, is determined based on evaluation.

A few properties with elevated levels of compounds will be evaluated for further assessment. To protect privacy, property locations will not be provided in the data tables (see the Soil Sampling Highlights April 2023 video on this page for additional details). Additional results will be added to this webpage as they become available.

The spreadsheet in the Norfolk Southern Data section contains all validated data received by EPA to date.

Frequently Asked Questions About Soils Sampling Results 

Soil and Sediment Sampling Results Quick Reference Guide

The Ohio Train Derailment Response location. The derailment location is labeled with an orange circle with an exclamation point and the EPA welcome center is labeled with a white circle with a blue building. Around the derailment location, there is a 1-mile radius circle in black and a 2-mile radius circle in brown. The soil sample target area is labeled with green dash marks and the East Palestine boundary is labeled with gray dash marks. — Derailment Location and Surrounding Area Map

Print version of the map:
Derailment Location and Surrounding Area Map (pdf) (2.4 MB)

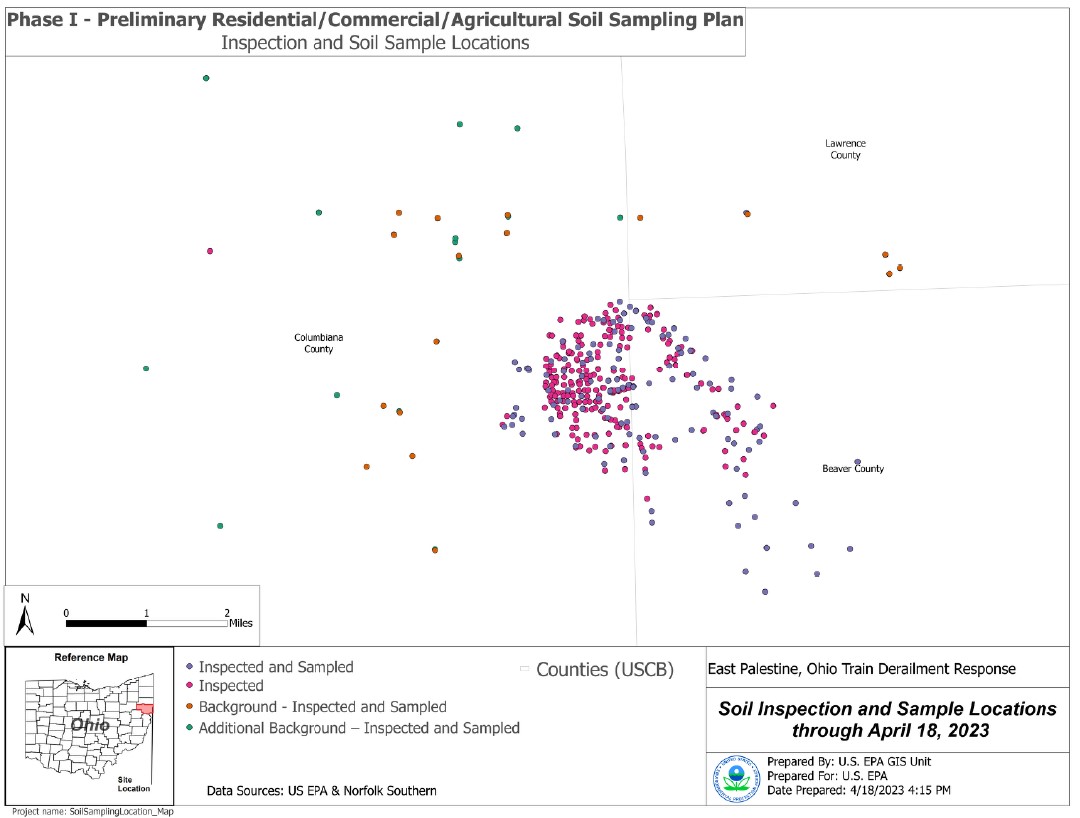

Scatter plot locating soil inspected and sampled (purple), inspected (pink), background inspected and sampled (orange), and additional background inspected and sampled (green). — Soil Inspection and Sample Locations

Print version of the map:
Soil Inspection and Sample Locations (pdf) (1.23 MB)

Results for Semivolatile Organics

(The units of measure for analytes in the table below are in mg/kg)

Sample Collection Date	3/9/2023									3/10/2023											3/11/2023													3/12/2023				3/13/2023										3/15/2023									3/17/2023		3/20/2023		3/21/2023				3/22/2023		3/23/2023			3/24/2023		3/26/2023		3/28/2023				3/30/2023			4/2/2023		4/6/2023		4/7/2023		4/11/2023		4/12/2023					4/14/2023
Sampling Depth in Inches	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6
Analyte (CAS No)	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated
2,4,5-Trichlorophenol (95-95-4)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.31 U	0.28 U	0.26 U	0.25 U	0.22 U	0.47 U	0.19 U	0.4 U	0.26 U	0.22 U	0.24 U	0.2 U	0.56 U	0.5 U	0.26 U	0.24 U	0.21 U	0.29 U	0.19 U	0.23 U	0.2 U	0.24 U	0.2 U	0.45 U	0.23 U	0.2 U	0.26 U	0.38 U	0.37 U	0.23 U	0.21 U	0.22 U	0.21 U	0.2 U	0.44 U	0.41 U	0.51 U	0.58 U	0.48 U	0.49 U	0.19 U	0.21 U	0.22 U	0.22 U	0.22 U	0.22 U	0.21 U	0.25 UJ	0.21 U	0.19 U	0.2 U	0.23 U	0.21 U	0.25 U	0.22 U	0.21 U	0.96 U	0.57 U
2,4-Dichlorophenol (120-83-2)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.31 U	0.28 U	0.26 U	0.25 U	0.22 U	0.47 U	0.19 U	0.4 U	0.26 U	0.22 U	0.24 U	0.2 U	0.56 U	0.5 U	0.26 U	0.24 U	0.21 U	0.29 U	0.19 U	0.23 U	0.2 U	0.24 U	0.2 U	0.45 U	0.23 U	0.2 U	0.26 U	0.38 U	0.37 U	0.23 U	0.21 U	0.22 U	0.21 U	0.2 U	0.44 U	0.41 U	0.51 U	0.58 U	0.48 U	0.49 U	0.19 U	0.21 U	0.22 U	0.22 U	0.22 U	0.22 U	0.21 U	0.25 UJ	0.21 U	0.19 U	0.2 U	0.23 U	0.21 U	0.25 U	0.22 U	0.21 U	0.96 U	0.57 U
2-Chlorophenol (95-57-8)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.12 U	0.11 U	0.11 U	0.099 U	0.088 U	0.19 U	0.077 U	0.16 U	0.1 U	0.088 U	0.095 U	0.079 U	0.22 U	0.2 U	0.1 U	0.096 U	0.086 U	0.11 U	0.076 U	0.09 U	0.081 U	0.095 U	0.08 U	0.18 U	0.092 U	0.081 U	0.1 U	0.15 U	0.15 U	0.091 U	0.084 U	0.086 U	0.084 U	0.079 U	0.18 U	0.16 U	0.2 U	0.23 U	0.19 U	0.19 U	0.075 U	0.083 U	0.086 U	0.089 U	0.088 U	0.089 U	0.082 U	0.098 UJ	0.085 U	0.077 U	0.081 U	0.091 U	0.083 U	0.099 U	0.087 U	0.085 U	0.39 U	0.23 U
2-Methylnaphthalene (91-57-6)	0.4 U	0.39 U	0.446 U	0.429 U	0.32 J	0.114 J	0.116 J	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.0938 J	0.0516 J	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.217 J	0.116 J	0.0436 J	0.57 U	0.433 U	0.384 U	0.381 U	0.0762 J	0.0929 J	0.147 J	0.568 UJ	0.58 UJ	0.115 J-	0.062 U	0.027 J	0.0217 J	0.0421 J	0.0652	0.0514 J	0.0307 J	0.0572 J	0.0139 J	0.0215 J	0.202	0.128	0.179	0.168	0.164	0.577	0.945	0.25	0.106	0.045 U	0.041 U	0.285	0.232	0.09 U	0.046 U	0.041 U	0.051 U	0.101	0.0854	0.211	0.332	0.33	0.0438	0.052	0.0524 J	0.082	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.0279 J	0.0359 J	0.049 UJ	0.0219 J	0.038 U	0.041 U	0.187	0.142	0.267	0.336	0.235	0.0501 J	0.0292 J
4-Chloro-3-methylphenol (59-50-7)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.31 U	0.28 U	0.26 U	0.25 U	0.22 U	0.47 U	0.19 U	0.4 U	0.26 U	0.22 U	0.24 U	0.2 U	0.56 U	0.5 U	0.26 U	0.24 U	0.21 U	0.29 U	0.19 U	0.23 U	0.2 U	0.24 U	0.2 U	0.45 U	0.23 U	0.2 U	0.26 U	0.38 U	0.37 U	0.23 U	0.21 U	0.22 U	0.21 U	0.2 U	0.44 U	0.41 U	0.51 U	0.58 U	0.48 U	0.49 U	0.19 U	0.21 U	0.22 U	0.22 U	0.22 U	0.22 U	0.21 U	0.25 UJ	0.21 U	0.19 U	0.2 U	0.23 U	0.21 U	0.25 U	0.22 U	0.21 U	0.96 U	0.57 U
4-Chlorophenyl phenyl ether (7005-72-3)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.12 U	0.11 U	0.11 U	0.099 U	0.088 U	0.19 U	0.077 U	0.16 U	0.1 U	0.088 U	0.095 U	0.079 U	0.22 U	0.2 U	0.1 U	0.096 U	0.086 U	0.11 U	0.076 U	0.09 U	0.081 U	0.095 U	0.08 U	0.18 U	0.092 U	0.081 U	0.1 U	0.15 U	0.15 U	0.091 U	0.084 U	0.086 U	0.084 U	0.079 U	0.18 U	0.16 U	0.2 U	0.23 U	0.19 U	0.19 U	0.075 U	0.083 U	0.086 U	0.089 U	0.088 U	0.089 U	0.082 U	0.098 UJ	0.085 U	0.077 U	0.081 U	0.091 U	0.083 U	0.099 U	0.087 U	0.085 U	0.39 U	0.23 U
Acenaphthene (83-32-9)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	1.21 J	1.16 J	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.093 U	0.039 U	0.08 U	0.051 U	0.0258 J	0.048 U	0.04 U	0.11 U	0.1 UJ	0.0304 J	0.048 U	0.043 U	0.057 U	0.038 U	0.045 U	0.041 U	0.047 U	0.04 U	0.09 U	0.046 U	0.041 U	0.051 U	0.076 U	0.074 U	0.046 U	0.042 U	0.043 U	0.042 U	0.039 U	0.089 U	0.082 U	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.044 U	0.041 U	0.049 UJ	0.043 U	0.038 U	0.041 U	0.045 U	0.041 U	0.049 U	0.043 U	0.043 U	0.19 U	0.11 U
Acenaphthylene (208-96-8)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	0.478 J	0.376 J	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.0559 J	0.58 U	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.093 U	0.039 U	0.08 U	0.051 U	0.044 U	0.0299 J	0.04 U	0.107 J	0.0821 J	0.152 J	0.0405 J	0.065	0.0507 J	0.0207 J	0.045 U	0.041 U	0.047 U	0.04 U	0.09 U	0.046 U	0.041 U	0.051 U	0.076 U	0.074 U	0.046 U	0.042 U	0.043 U	0.042 U	0.039 U	0.089 U	0.082 U	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.044 U	0.041 U	0.049 UJ	0.043 U	0.038 U	0.041 U	0.045 U	0.041 U	0.049 U	0.043 U	0.043 U	0.19 U	0.0628 J
Benzo(a)anthracene (56-55-3)	0.4 U	0.0335 J	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.0404 J	0.343 U	0.0379 J	0.0365 J	0.444 U	0.466 U	0.0966 J	0.0754 J	0.421 U	0.409 U	20.2	15.3	0.118 J	0.0518 J	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.0876 J	0.121 J	0.58 U	0.0548 J	0.062 U	0.0233 J	0.0186 J	0.0176 J	0.0249 J	0.0534 J	0.0505 J	0.457 J	0.0283 J	0.318	0.0662	0.0681	0.905	0.641	0.701	0.217	0.344	0.135	0.0642	0.0142 J	0.041 U	0.0326 J	0.0258 J	0.09 U	0.046 U	0.041 U	0.051 U	0.0849	0.06 J	0.0196 J	0.0234 J	0.0177 J	0.0207 J	0.0247 J	0.14	0.231	0.0743 J	0.12 U	0.0408 J	0.0371 J	0.038 U	0.0146 J	0.043 U	0.045 U	0.044 U	0.0962	0.072	0.049 UJ	0.0522	0.0121 J	0.016 J	0.0138 J	0.041 U	0.074	0.0633	0.0546	0.951	0.453
Benzo(a)pyrene (50-32-8)	0.0175	0.02	0.0158	0.0146	0.0078 J	0.0027 J	0.0135 U	0.0224	0.0062 J	0.598 U	0.442 U	0.354 U	0.0379 J	0.0289 J	0.414 U	0.0376 J	0.0715 J	0.466 U	0.109 J	0.0608 J	0.0086 U	0.0176	11.9	10.7	0.208	0.05	0.0423	0.0133	0.0022 J	0.014	0.0036 J	0.165	0.0144	0.0244	0.0494	0.0602	0.0642 J	0.062 U	0.056 U	0.053 U	0.049 U	0.0228 J	0.0745 J	0.0989 J	0.962 J	0.0308 J	0.281	0.0659	0.0696	1.36	0.932	1.04	0.239	0.343	0.147	0.074	0.045 U	0.041 U	0.0309 J	0.0243 J	0.09 U	0.046 U	0.041 U	0.051 U	0.0932	0.0587 J	0.046 U	0.042 U	0.043 U	0.0204 J	0.0281 J	0.195	0.317	0.0717 J	0.12 U	0.095 U	0.0449 J	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.117	0.0934	0.049 UJ	0.0545	0.038 U	0.041 U	0.045 U	0.041 U	0.063	0.0523	0.049	1.23	0.575
Benzo(b)fluoranthene (205-99-2)	0.4 U	0.0377 J	0.446 U	0.0327 J	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.0477 J	0.0344 J	0.0384 J	0.0461 J	0.115 J	0.466 U	0.685 U	0.0717 J	0.421 U	0.409 U	33.1	23.2	0.171 J	0.0843 J	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.122 J	0.314 J	0.0548 J	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.0331 J	0.112	0.124 J	1.08 J	0.0377 J	0.322	0.112	0.112	2.06	1.31	1.67	0.385	0.571	0.201	0.0987	0.045 U	0.041 U	0.0522	0.0373 J	0.09 U	0.046 U	0.041 U	0.051 U	0.122	0.0777	0.0227 J	0.0228 J	0.0215 J	0.0287 J	0.0402	0.247	0.4	0.0857 J	0.12 U	0.0612 J	0.0574 J	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.167	0.13	0.049 UJ	0.0565	0.038 U	0.0188 J	0.045 U	0.041 U	0.102	0.0882	0.0737	1.62	0.841
Benzo(g,h,i)perylene (191-24-2)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.0337 J	0.0851 J	0.466 U	0.055 J	0.518 U	0.421 U	0.409 U	17.2 J+	13.3	0.111 J	0.0558 J	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.0697 J	0.568 U	0.58 U	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.0757 J	0.0836 J	0.593 J	0.051 U	0.147	0.0585	0.0514	1.24	0.881	0.987	0.191	0.262	0.119	0.0575	0.045 U	0.041 U	0.0521	0.0383 J	0.09 U	0.046 U	0.041 U	0.051 U	0.0833	0.0516 J	0.046 U	0.0293 J	0.0268 J	0.042 U	0.0217 J	0.169	0.248	0.0523 J	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.0889	0.0646	0.049 UJ	0.0373 J	0.038 U	0.041 U	0.045 U	0.041 U	0.0462 J	0.0468	0.0381 J	0.933	0.462
Dibenzo(a,h)anthracene (53-70-3)	0.0122 U	0.0122 U	0.0034 J	0.0131 U	0.0138 U	0.0132 U	0.0135 U	0.0191 U	0.0131 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.0086 U	0.0081 U	2.34	1.97	0.0385	0.0107	0.0081 U	0.0117 U	0.0086 U	0.0077 U	0.0076 U	0.0657	0.0085 U	0.0143 U	0.0171 U	0.0176 U	0.0126 J	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.093 U	0.0205 J	0.157 J	0.051 U	0.0476	0.048 U	0.0177 J	0.254	0.191	0.2	0.0459 J	0.0687	0.0317 J	0.038 U	0.045 U	0.041 U	0.047 U	0.04 U	0.09 U	0.046 U	0.041 U	0.051 U	0.076 U	0.074 U	0.046 U	0.042 U	0.043 U	0.042 U	0.039 U	0.042 J	0.0586 J	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.0243 J	0.0182 J	0.049 UJ	0.043 U	0.038 U	0.041 U	0.045 U	0.041 U	0.049 U	0.0195 J	0.043 U	0.207	0.122
Fluoranthene (206-44-0)	0.4 U	0.0438 J	0.446 U	0.0362 J	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.0511 J	0.0427 J	0.0623 J	0.0735 J	0.17 J	0.466 U	0.205 J	0.136 J	0.421 U	0.409 U	51.6	38.4	0.257 J	0.077 J	0.0483 J	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.15 J	2.8	0.0761 J	0.108 J	0.062 U	0.0292 J	0.053 U	0.049 U	0.0278 J	0.0669 J	0.0494 J	0.308 J	0.053	0.816	0.127	0.0914	2	1.32	1.54	0.541	0.733	0.25	0.0981	0.045 U	0.041 U	0.0595	0.031 J	0.09 U	0.046 U	0.041 U	0.051 U	0.17	0.122	0.046 U	0.0227 J	0.024 J	0.0274 J	0.0379 J	0.236	0.333	0.154	0.12 U	0.0677 J	0.0499 J	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.23	0.146	0.049 UJ	0.0807	0.038 U	0.0204 J	0.0211 J	0.0191 J	0.139	0.109	0.101	2.81	1.21
Fluorene (86-73-7)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	1.56 J	1.44 J	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.093 U	0.039 U	0.08 U	0.051 U	0.0277 J	0.048 U	0.04 U	0.11 U	0.1 U	0.0498 J	0.048 U	0.0307 J	0.031 J	0.038 U	0.045 U	0.041 U	0.047 U	0.04 U	0.09 U	0.046 U	0.041 U	0.051 U	0.076 U	0.074 U	0.046 U	0.042 U	0.043 U	0.042 U	0.039 U	0.089 U	0.082 U	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.044 U	0.041 U	0.049 UJ	0.043 U	0.038 U	0.041 U	0.045 U	0.041 U	0.049 U	0.043 U	0.043 U	0.19 U	0.11 U
Hexachlorobenzene (118-74-1)	0.0812 U	0.0791 U	0.0905 U	0.0871 U	0.0924 U	0.0883 U	0.0902 U	0.127 U	0.0876 U	0.121 U	0.0897 U	0.0718 U	0.0688 U	0.0696 U	0.0841 U	0.0844 U	0.0902 U	0.0947 U	0.139 U	0.105 U	0.0855 U	0.0831 U	0.471 U	0.393 U	0.0964 U	0.0806 U	0.0823 U	0.116 U	0.088 U	0.078 U	0.0773 U	0.127 U	0.0844 U	0.0943 U	0.115 U	0.118 U	0.0962 U	0.12 U	0.11 U	0.11 U	0.099 U	0.088 U	0.19 U	0.077 U	0.16 U	0.1 U	0.088 U	0.095 U	0.079 U	0.22 U	0.2 U	0.1 U	0.096 U	0.086 U	0.11 U	0.076 U	0.09 U	0.081 U	0.095 U	0.08 U	0.18 U	0.092 U	0.081 U	0.1 U	0.15 U	0.15 U	0.091 U	0.084 U	0.086 U	0.084 U	0.079 U	0.18 U	0.16 U	0.2 U	0.23 U	0.19 U	0.19 U	0.075 U	0.083 U	0.086 U	0.089 U	0.088 U	0.089 U	0.082 U	0.098 UJ	0.085 U	0.077 U	0.081 U	0.091 U	0.083 U	0.099 U	0.087 U	0.085 U	0.39 U	0.23 U
Indeno(1,2,3-cd)pyrene (193-39-5)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.0648 J	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	18.9	14.1	0.0947 J	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.0732 J	0.0843 J	0.58 U	0.474 U	0.062 U	0.056 U	0.053 U	0.049 U	0.044 U	0.0762 J	0.0893 J	0.691 J	0.0246 J	0.194	0.0581	0.0535	1.06	0.732	1.07	0.205	0.277	0.113	0.0604	0.045 U	0.041 U	0.047 U	0.04 U	0.09 U	0.046 U	0.041 U	0.051 U	0.0605 J	0.0418 J	0.046 U	0.042 U	0.043 U	0.042 U	0.0228 J	0.135	0.203	0.052 J	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.0986	0.0703	0.049 UJ	0.0351 J	0.038 U	0.041 U	0.045 U	0.041 U	0.0408 J	0.034 J	0.0328 J	0.849	0.426
Naphthalene (91-20-3)	0.4 U	0.39 U	0.446 U	0.429 U	0.197 J	0.0739 J	0.0743 J	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.066 J	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.144 J	0.0714 J	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.101 J	0.568 U	0.58 UJ	0.089 J	0.062 U	0.0172 J	0.0166 J	0.0256 J	0.0411 J	0.0367 J	0.0205 J	0.0398 J	0.051 U	0.0329 J	0.195	0.126	0.133	0.145	0.13	0.398	0.601	0.191	0.0839	0.045 U	0.041 U	0.164	0.135	0.09 U	0.046 U	0.041 U	0.051 U	0.0668 J	0.0538 J	0.148	0.264	0.245	0.0302 J	0.0337 J	0.0393 J	0.0606 J	0.1 U	0.12 U	0.095 U	0.097 U	0.038 U	0.041 U	0.043 U	0.045 U	0.044 U	0.0168 J	0.0207 J	0.049 UJ	0.0184 J	0.038 U	0.041 U	0.214	0.129	0.178	0.221	0.15	0.19 U	0.11 U
Pentachlorophenol (87-86-5)	0.812 U	0.791 U	0.905 U	0.871 U	0.924 U	0.883 U	0.902 U	1.27 U	0.876 U	1.21 U	0.897 U	0.718 U	0.688 U	0.696 U	0.841 U	0.844 U	0.902 U	0.947 U	1.39 U	1.05 U	0.855 U	0.831 U	4.71 UJ	3.93 U	0.964 U	0.806 U	0.823 U	1.16 U	0.88 U	0.78 U	0.773 U	1.27 U	0.844 U	0.943 U	1.15 U	1.18 U	0.962 U	0.25 U	0.22 U	0.21 U	0.2 U	0.18 U	0.37 U	0.15 U	0.32 U	0.21 U	0.18 U	0.19 U	0.16 U	0.45 U	0.4 U	0.21 U	0.19 U	0.17 U	0.23 U	0.15 U	0.18 U	0.16 U	0.19 U	0.16 U	0.36 U	0.18 U	0.16 U	0.21 U	0.3 U	0.3 U	0.18 U	0.17 U	0.17 U	0.17 U	0.16 U	0.35 U	0.33 U	0.4 U	0.46 U	0.38 U	0.39 U	0.15 UJ	0.17 UJ	0.17 UJ	0.18 U	0.18 U	0.18 U	0.16 U	0.2 UJ	0.17 UJ	0.15 U	0.16 U	0.18 U	0.17 U	0.2 U	0.17 U	0.17 U	0.77 U	0.46 U
Phenol (108-95-2)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.444 U	0.466 U	0.685 U	0.518 U	0.421 U	0.409 U	2.32 U	1.93 U	0.475 U	0.397 U	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.465 U	0.568 U	0.58 U	0.474 U	0.12 U	0.11 U	0.11 U	0.099 U	0.088 U	0.19 U	0.077 U	0.16 U	0.1 U	0.088 U	0.095 U	0.079 U	0.22 U	0.0866 J	0.0412 J	0.096 U	0.086 U	0.963	0.076 U	0.09 U	0.081 U	0.095 U	0.08 U	0.18 U	0.092 U	0.081 U	0.1 U	0.15 U	0.15 U	0.091 U	0.084 U	0.086 U	0.084 U	0.079 U	0.18 U	0.16 U	0.2 U	0.23 U	0.19 U	0.19 U	0.075 U	0.083 U	0.086 U	0.089 U	0.088 U	0.089 U	0.082 U	0.098 UJ	0.085 UJ	0.077 U	0.081 U	0.091 U	0.083 U	0.099 U	0.087 U	0.085 U	0.141 J	0.118 J
Pyrene (129-00-0)	0.4 U	0.39 U	0.446 U	0.429 U	0.455 U	0.435 U	0.444 U	0.623 U	0.432 U	0.598 U	0.442 U	0.354 U	0.339 U	0.343 U	0.414 U	0.416 U	0.122 J	0.466 U	0.151 J	0.0944 J	0.421 U	0.409 U	38	28.8	0.208 J	0.0939 J	0.405 U	0.57 U	0.433 U	0.384 U	0.381 U	0.624 U	0.416 U	0.114 J	1.58	0.58 U	0.0835 J	0.062 U	0.0317 J	0.0244 J	0.023 J	0.0337 J	0.0711 J	0.0563 J	0.532 J	0.0587	0.809	0.102	0.087	1.63	1.09	1.37	0.395	0.612	0.218	0.0898	0.045 U	0.041 U	0.0611	0.0484	0.09 U	0.046 U	0.041 U	0.051 U	0.132	0.0854	0.023 J	0.0273 J	0.0284 J	0.0277 J	0.0344 J	0.213	0.321	0.12	0.12 U	0.0512 J	0.0406 J	0.038 U	0.0155 J	0.043 U	0.045 U	0.044 U	0.188	0.134	0.049 UJ	0.0666	0.038 U	0.0181 J	0.0232 J	0.0215 J	0.129	0.108	0.1	2.11	0.951

Table updated July 9, 2023

Results for Dioxins and Furans

(The units of measure for analytes in the table below are in mg/kg)

Sample Collection Date	3/9/2023									3/10/2023											3/11/2023													3/12/2023				3/13/2023										3/15/2023									3/17/2023		3/20/2023		3/21/2023				3/22/2023		3/23/2023			3/24/2023		3/26/2023		3/28/2023				3/30/2023			4/2/2023		4/6/2023		4/7/2023		4/11/2023		4/12/2023					4/14/2023
Sampling Depth in Inches	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	0-1	1-6	1-6	0-1	1-6
Analyte (CAS No)	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated	Validated
1,2,3,4,6,7,8-HpCDD (35822-46-9)	0.000015	0.000027	0.000014	0.000016	0.00000089 J	0.000005 U	0.0000054 U	0.000011	0.0000088	0.00032	0.00033	0.0000072	0.0000032 J	0.000011 J	0.000004	0.000014	0.0000022	0.0000044	0.0000068	0.0000026	0.0000096	0.0000081	0.0001	0.000049 J-	0.000036	0.000022 J	0.000009 J	0.000011	0.00001	0.0000036 U	0.0000036 U	0.0000044 J	0.0000017 J	0.000021	0.00048	0.00085	0.00016	0.0000698	0.0000727	0.0000736	0.0000112	0.0000138	0.000431	0.00058	0.000338	0.0000433	0.0000298	0.0000769	0.0000779	0.000259 J	0.000156	0.000102	0.000205	0.00015	0.000196 J-	0.000189 J-	0.0000155 J-	0.0000206	0.0000103	0.00000471	0.0000187	0.000017	0.0000126	0.00000559	0.0000739	0.000064	0.00000329 J+	0.00000517	0.00000414	0.0000112	0.0000116	0.000034	0.0000686 J-	0.0000363 J-	0.0000278	0.0000344 J-	0.0000643 J-	0.00000163	0.000000627	0.00000075	0.0000356	0.0000165	0.000117	0.000139	0.0000936	0.0000741	0.0000109	0.00000895	0.0000524	0.0000398	0.000051	0.0000661 J-	0.0000712 J-	0.00025	0.000232
1,2,3,4,6,7,8-HpCDF (67562-39-4)	0.0000016 J	0.0000026 J	0.0000029 J	0.0000031 J	0.00000069 J	0.000005 U	0.0000054 U	0.000003 J	0.0000022 J	0.000046	0.00004	0.0000023	0.0000012 J	0.0000041 J	0.0000021	0.0000064	0.000004 U	0.0000043 U	0.0000023	0.0000013	0.0000031 J	0.000003 J	0.000016	0.0000096 J-	0.000011	0.0000065	0.0000029 J	0.000002 J	0.0000026 J	0.0000036 U	0.0000036 U	0.0000015 J	0.00000078 J	0.0000044 J	0.00014	0.00024	0.000034	0.0000262	0.0000281	0.0000285	0.0000038	0.00000501	0.0000634	0.000103	0.0000519	0.0000235	0.0000129	0.0000133	0.0000127	0.0000474	0.0000308	0.00000895	0.0000221	0.0000688	0.0000893 J-	0.0000846 J-	0.00000169 J-	0.00000188	0.00000544	0.00000153 J	0.00000344	0.00000252	0.00000339	0.00000164 U	0.0000325	0.0000304	0.00000153 U	0.00000164 U	0.00000163 U	0.00000395	0.00000346	0.0000151	0.000038	0.00000429 J-	0.00000359	0.00000585 J-	0.0000104 J-	0.00000163 U	0.0000104 J	0.0000117 J	0.0000171	0.000007	0.0000627	0.000134	0.0000286	0.0000225	0.00000305	0.00000271	0.00000109 J	0.00000097 J	0.000013	0.000017 J-	0.000017 J-	0.0000374	0.0000333
1,2,3,4,7,8,9-HpCDF (55673-89-7)	0.0000048 U	0.0000049 U	0.000005 U	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000032 J	0.0000029 J	0.0000033 U	0.0000032 U	0.0000032 U	0.0000039 U	0.00000038	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000038 J	0.0000038 U	0.0000067 U	0.0000036 UJ	0.0000011 J	0.00000079 J	0.0000037 U	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 UJ	0.0000039 U	0.0000044 U	0.0000064	0.000012	0.0000018 J	0.00000186 J	0.00000183	0.00000173 J	0.00000031 J	0.000000425 J	0.00000478	0.00000804	0.00000389	0.0000015 J	0.000000844 J	0.000000965 J	0.00000084 J	0.00000399	0.00000259	0.00000043 J	0.00000118 J	0.00000533	0.00000564 J-	0.00000682 J-	0.00000166 UJ	0.00000164 U	0.000000766 J	0.000000137 J	0.000000158 J	0.000000186 J	0.000000212 J	0.00000164 U	0.00000216	0.00000222 J	0.00000153 U	0.000000138 J	0.0000000991 J	0.000000312 J	0.000000377 J	0.00000141 J	0.00000299 J-	0.00000173 UJ	0.000000301 J	0.00000167 UJ	0.00000242 UJ	0.0000002 J	0.00000351 J	0.00000835 U	0.0000017	0.00000036 J	0.00000286	0.00000347	0.00000221	0.00000151 J	0.000000209 J	0.000000299 J	0.000000159 J	0.0000016 U	0.00000113 J	0.00000154 J-	0.00000134 J-	0.00000403	0.00000329 J
1,2,3,4,7,8-HxCDD (39227-28-6)	0.0000004 J	0.00000059 J	0.00000084 J	0.00000077 J	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000036 J	0.0000027 J	0.00000031	0.0000032 U	0.00000035 J	0.0000039 U	0.00000041 J	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000039 J	0.00000036 J	0.000002 J	0.0000013 J	0.0000011 J	0.0000006 J	0.00000035 J	0.00000041 J	0.00000053 J	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.00000069 J	0.0000064	0.000011	0.0000035 J	0.0000014 J	0.00000161 J	0.0000017 J	0.000000529 J	0.000000589 J	0.0000081	0.0000112	0.0000065	0.00000132 J	0.000000591 J	0.00000127 J	0.00000115 J	0.00000591	0.00000359	0.00000211	0.00000414	0.00000446	0.00000499 J-	0.00000455 J-	0.00000166 UJ	0.000000382 J	0.000000659 J	0.000000244 J	0.000000433 J	0.000000443 J	0.000000316 J	0.000000268 J	0.00000222	0.00000158 J	0.000000202 J	0.000000272 J	0.000000234 J	0.000000306 J	0.000000383 J	0.00000108 J	0.00000173 J	0.000000697 J-	0.000000461 J	0.00000114 J-	0.00000242 UJ	0.00000163 U	0.000000251 J	0.00000164 J	0.00000163 U	0.00000167 U	0.00000217	0.00000533	0.00000253	0.000002	0.000000484 J	0.000000313 J	0.000000655 J	0.000000417 J	0.00000121 J	0.00000185 J-	0.00000196 J-	0.0000021 J	0.00000174 J
1,2,3,4,7,8-HxCDF (70648-26-9)	0.0000048 U	0.0000049 U	0.000005 U	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.000001 J	0.00000084 J	0.0000033 U	0.0000032 U	0.00000028	0.0000039 U	0.00000047	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000051 J	0.00000064 J	0.0000067 U	0.00000058 J	0.0000026 J	0.0000013 J	0.00000083 J	0.00000034 J	0.0000054 U	0.0000036 U	0.0000036 U	0.00000053 J	0.0000039 U	0.0000044 U	0.0000043 J	0.0000077	0.0000017 J	0.00000203 J	0.00000238	0.00000249	0.000000714 J	0.000000953 J	0.00000492	0.00000673	0.00000417	0.00000392	0.00000218	0.00000114 J	0.00000105 J	0.00000434	0.00000341	0.000000751 J	0.00000199	0.0000106	0.0000129 J-	0.0000127 J-	0.00000166 UJ	0.000000372 J	0.00000159 J	0.00000035 J	0.000000479 J	0.000000432 J	0.000000439 J	0.00000164 U	0.00000269	0.00000252	0.000000188 J	0.000000213 J	0.000000197 J	0.000000741 J	0.000000616 J	0.00000209 J	0.00000412	0.000000769 J-	0.000000367 J	0.000000797 J-	0.00000242 UJ	0.000000253 J	0.000000329 J	0.000000559 J	0.00000447	0.000000634 J	0.00000404	0.00000576	0.0000027	0.00000204	0.000000559 J	0.000000615 J	0.000000173 J	0.000000235 J	0.00000111 J	0.00000152 J-	0.00000163 J-	0.00000249 J	0.00000221 J
1,2,3,6,7,8-HxCDD (57653-85-7)	0.0000048 U	0.00000065 J	0.00000081 J	0.0000009 J	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000065	0.0000057	0.00000045	0.0000032 U	0.00000056	0.0000039 U	0.0000008	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000046 J	0.00000044 J	0.0000083	0.000003 J	0.0000022 J	0.0000013 J	0.00000059 J	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.000001 J	0.000019	0.000031	0.0000085	0.000004 J	0.00000476	0.0000042	0.000000736 J	0.000000923 J	0.0000199	0.000026	0.0000161	0.00000242	0.00000107 J	0.00000271 J	0.00000283	0.0000112	0.00000665	0.00000559	0.0000118	0.00000783	0.0000109 J-	0.0000103 J-	0.00000166 UJ	0.000000505 J	0.00000076 J	0.000000319 J	0.000000634 J	0.000000404 J	0.000000533 J	0.000000278 J	0.00000416	0.00000405	0.000000205 J	0.000000321 J	0.000000224 J	0.000000466 J	0.000000448 J	0.00000225 J	0.00000491 J-	0.00000126 J-	0.00000081 J	0.00000144 J-	0.00000242 UJ	0.00000163 U	0.000000256 J	0.0000004 J	0.00000273	0.00000087 J	0.00000556	0.00000636	0.00000477	0.0000037	0.000000631 J	0.000000537 J	0.00000106 J	0.00000044 J	0.00000224	0.00000302 J-	0.00000344 J-	0.00000632	0.00000535
1,2,3,6,7,8-HxCDF (57117-44-9)	0.0000048 U	0.0000049 U	0.000005 U	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.00000061 J	0.00000065 J	0.0000033 U	0.0000032 U	0.00000041	0.0000039 U	0.0000005	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.0000004 J	0.00000046 J	0.0000015 J	0.0000036 U	0.0000013 J	0.00000081 J	0.00000038 J	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.0000044 U	0.0000053	0.0000081	0.0000014 J	0.00000212	0.00000205	0.00000214	0.000000603 J	0.000000759 J	0.00000368	0.00000708 J	0.00000301 J	0.00000346	0.00000178	0.00000119 J	0.000000938 J	0.00000545	0.00000431	0.0000012 J	0.00000231	0.00000937	0.0000134 J-	0.0000121 J-	0.00000166 UJ	0.000000285 J	0.00000111 J	0.0000002 J	0.000000387 J	0.00000034 J	0.000000408 J	0.00000164 U	0.00000307	0.00000222	0.000000149 J	0.000000172 J	0.000000139 J	0.000000502 J	0.000000462 J	0.00000195 J	0.00000438	0.000000454 J-	0.00000029 J	0.00000078 J-	0.00000242 UJ	0.000000195 J	0.000000433 J	0.000000583 J	0.00000166	0.000000435 J	0.00000358	0.0000038	0.0000025	0.000002	0.000000523 J	0.000000479 J	0.000000186 J	0.000000164 J	0.00000106 J	0.00000164 J-	0.00000159 J-	0.00000146 J	0.00000138 J
1,2,3,7,8,9-HxCDD (19408-74-3)	0.00000047 J	0.00000079 J	0.0000012 J	0.0000012 J	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000052 J	0.0000041	0.00000039	0.0000032 U	0.00000046 J	0.0000039 U	0.00000077	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000052 J	0.00000053 J	0.000013	0.0000058	0.0000017 J	0.0000012 J	0.00000038 J	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.00000097 J	0.000012	0.000019	0.0000067	0.0000028	0.00000287	0.00000316	0.000000659 J	0.000000844 J	0.0000146	0.00002	0.0000123	0.00000159 J	0.00000106 J	0.0000023	0.00000245	0.0000126	0.00000729	0.00000477	0.00000975	0.00000807	0.00000949 J-	0.0000094 J-	0.00000166 UJ	0.000000618 J	0.000000733 J	0.000000344 J	0.000000586 J	0.00000059 J	0.000000591 J	0.000000351 J	0.0000046	0.00000333 J	0.000000246 J	0.000000267 J	0.000000303 J	0.000000594 J	0.000000514 J	0.00000201 J	0.00000314	0.00000137 J-	0.000000783 J	0.00000119 J-	0.00000242 UJ	0.00000163 U	0.000000144 J	0.000000194 J	0.000000946 J	0.000000682 J	0.00000433	0.00000438	0.00000466	0.00000386	0.000000676 J	0.000000712 J	0.00000116 J	0.000000668 J	0.00000236	0.00000278 J-	0.00000283 J-	0.00000408	0.00000284 J
1,2,3,7,8,9-HxCDF (72918-21-9)	0.0000048 U	0.0000049 U	0.000005 U	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000056 U	0.00000044 J	0.0000033 U	0.0000032 U	0.0000032 U	0.0000039 U	0.0000039 U	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000046 J	0.0000038 U	0.0000067 U	0.0000036 U	0.00000059 J	0.00000038 J	0.0000037 U	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.00000048 J	0.00000092 J	0.0000013 J	0.00000048 J	0.00000212 U	0.00000179 U	0.000002 U	0.00000176 U	0.00000165 U	0.00000166 U	0.00000164 U	0.00000162 U	0.00000165 U	0.00000165 U	0.00000166 U	0.00000166 U	0.00000164 U	0.00000161 U	0.00000161 U	0.00000179 U	0.00000166 U	0.00000164 UJ	0.00000164 UJ	0.00000166 UJ	0.00000164 U	0.00000167 U	0.00000166 U	0.00000165 U	0.00000166 U	0.00000162 U	0.00000164 U	0.00000154 U	0.00000165 U	0.00000153 U	0.00000164 U	0.00000163 U	0.00000165 U	0.00000165 U	0.00000245 U	0.00000246 U	0.00000173 UJ	0.0000018 U	0.00000167 UJ	0.00000242 UJ	0.00000163 U	0.000000321 U	0.000000364 U	0.00000163 U	0.00000167 U	0.00000165 U	0.00000165 U	0.00000165 U	0.00000163 U	0.00000166 U	0.00000166 U	0.00000167 U	0.0000016 U	0.00000166 U	0.00000166 UJ	0.00000166 UJ	0.00000356 U	0.00000375 U
1,2,3,7,8-PeCDD (40321-76-4)	0.0000048 U	0.0000002 J	0.00000031 J	0.0000004 J	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.00000084 J	0.00000048 J	0.00000018	0.0000032 U	0.00000019 J	0.0000039 U	0.0000039 U	0.000004 U	0.0000043 U	0.00000045	0.0000051 U	0.000004 U	0.0000038 U	0.0000046 J	0.0000029 J	0.00000038 J	0.0000036 U	0.00000018 J	0.0000039 U	0.0000054 U	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.0000002 J	0.0000026 J	0.0000044 J	0.0000008 J	0.00000118 J	0.000000933 J	0.000000997 J	0.000000398 J	0.000000288 J	0.00000398	0.0000044 J	0.00000286	0.000000676 J	0.000000342 J	0.000000642 J	0.000000603 J	0.00000374	0.00000241	0.00000109 J	0.0000021	0.0000032	0.00000386 J-	0.00000341 J-	0.00000166 UJ	0.00000164 U	0.00000167 U	0.00000166 U	0.000000228 J	0.00000166 U	0.00000028 J	0.00000164 U	0.00000142 J	0.000000975 J	0.00000153 U	0.00000164 U	0.000000171 J	0.000000282 J	0.000000291 J	0.000000835 J	0.00000158 J	0.00000173 UJ	0.0000018 U	0.000000553 J-	0.00000242 UJ	0.00000163 U	0.00000166 U	0.00000164 U	0.000000259 J	0.000000166 J	0.00000123 J	0.00000122 J	0.00000128 J	0.00000101 J	0.000000267 J	0.000000236 J	0.000000397 J	0.000000262 J	0.000000581 J	0.000000892 J-	0.00000166 UJ	0.00000104 J	0.000000704 J
1,2,3,7,8-PeCDF (57117-41-6)	0.0000048 U	0.00000021 J	0.000005 U	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000029 J	0.0000027 J	0.00000025 J	0.0000032 UJ	0.0000003 J	0.0000017 J	0.0000068 J	0.000004 U	0.0000043 U	0.00000091 J	0.00000037 J	0.000002 J	0.0000048 J	0.0000067 U	0.0000036 U	0.00001 J	0.0000062 J	0.0000021 J	0.00000047 J	0.00000052 J	0.0000036 U	0.0000036 U	0.0000057 U	0.0000021 J	0.00000041 J	0.0000065 J	0.000011 J	0.0000025 J	0.00000141 J	0.00000106 J	0.000000834 J	0.000000361 J	0.00000063 J	0.00000117 J	0.00000231	0.00000147 J	0.00000146 J	0.000000733 J	0.000000796 J	0.000000588 J	0.00000145 J	0.00000122 J	0.000000336 J	0.000000609 J	0.00000494	0.00000661 J-	0.00000667 J-	0.00000166 UJ	0.00000164 U	0.000000584 J	0.000000254 J	0.00000025 J	0.000000346 J	0.000000242 J	0.00000164 U	0.000000838 J	0.000000817 J	0.00000153 U	0.000000177 J	0.00000163 U	0.000000313 J	0.000000287 J	0.000000899 J	0.00000215 J	0.00000173 UJ	0.0000018 U	0.00000167 UJ	0.00000242 UJ	0.00000163 U	0.00000166 U	0.00000164 U	0.00000105 J	0.000000287 J	0.00000131 J	0.00000103 J	0.00000106 J	0.000000763 J	0.000000471 J	0.0000003 J	0.00000167 U	0.0000016 U	0.00000049 J	0.000000914 J-	0.00000095 J-	0.000000577 J	0.000000552 J
2,3,4,6,7,8-HxCDF (60851-34-5)	0.00000038 J	0.00000062 J	0.00000042 J	0.0000052 U	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.0000016 J	0.0000014 J	0.0000033 U	0.0000032 UJ	0.00000042	0.0000039 U	0.00000043	0.000004 U	0.0000043 U	0.0000067 U	0.0000051 U	0.00000068 J	0.00000069 J	0.0000067 U	0.0000011 J	0.0000014 J	0.00000062 J	0.00000043 J	0.00000031 J	0.00000058 J	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.00000048 J	0.0000055	0.0000082	0.0000011 J	0.0000033	0.0000039	0.00000373	0.000000839 J	0.00000113 J	0.00000494	0.00000724	0.00000425	0.00000542	0.00000275	0.00000147 J	0.00000119 J	0.000011	0.00000882	0.00000125 J	0.00000261	0.0000127	0.0000177 J-	0.000017 J-	0.00000166 UJ	0.000000436 J	0.00000115 J	0.000000275 J	0.000000539 J	0.000000397 J	0.000000443 J	0.00000164 U	0.00000326	0.00000256 J	0.000000197 J	0.000000321 J	0.000000263 J	0.000000616 J	0.000000588 J	0.00000291	0.00000807	0.000000556 J-	0.000000391 J	0.00000067 J-	0.00000156 J-	0.000000226 J	0.00000166 J	0.00000164 J	0.00000222	0.000000557 J	0.00000381	0.00000439	0.0000038	0.00000313	0.00000058 J	0.000000524 J	0.00000019 J	0.000000122 J	0.00000142 J	0.00000193 J-	0.000002 J-	0.0000038	0.00000287 J
2,3,4,7,8-PeCDF (57117-31-4)	0.00000046 J	0.00000069 J	0.000005 U	0.00000026 J	0.000005 U	0.000005 U	0.0000054 U	0.0000076 U	0.0000053 U	0.00000043 J	0.00000043 J	0.00000016	0.0000032 U	0.00000018 J	0.00000045	0.00000071	0.000004 U	0.0000043 U	0.00000059	0.0000003	0.00000066 J	0.00000081 J	0.0000067 U	0.0000036 U	0.0000029 J	0.00000098 J	0.00000072 J	0.00000033 J	0.00000034 J	0.0000036 U	0.0000036 U	0.0000057 U	0.0000039 U	0.0000044 U	0.0000017 J	0.0000032 J	0.0000014 J	0.00000374	0.00000399	0.00000414	0.000000875 J	0.00000129 J	0.00000262	0.0000027	0.00000224	0.00000334	0.00000197	0.00000115 J	0.00000117 J	0.0000136	0.000012	0.000000705 J	0.00000153 J	0.00000999	0.0000141 J-	0.0000144 J-	0.00000166 UJ	0.000000468 J	0.000000992 J	0.000000282 J	0.000000436 J	0.000000493 J	0.000000282 J	0.00000164 U	0.00000219	0.00000212	0.00000153 U	0.000000206 J	0.00000163 U	0.000000702 J	0.00000061 J	0.00000266	0.00000681	0.00000173 U	0.0000018 U	0.00000078 J-	0.00000242 UJ	0.000000253 J	0.00000033 J	0.000000226 U	0.00000184	0.000000533 J	0.00000243	0.00000315	0.00000401	0.00000352	0.000000613 J	0.000000483 J	0.000000202 J	0.000000179 J	0.00000125 J	0.00000178 J-	0.00000212 J-	0.00000171 J	0.00000139 J
2,3,7,8-TCDD (1746-01-6)	0.00000097 U	0.00000097 U	0.000001 U	0.000001 U	0.000001 U	0.00000099 U	0.0000011 U	0.0000015 U	0.0000011 U	0.0000011 U	0.00000022 J	0.00000066 U	0.0000032 U	0.00000064 U	0.00000078 U	0.00000078 U	0.00000081 U	0.00000087 U	0.0000013 U	0.000001 U	0.00000081 U	0.00000075 U	0.0000047 J	0.0000023	0.0000009 U	0.00000072 U	0.00000073 U	0.00000078 U	0.0000011 U	0.00000072 U	0.00000071 U	0.0000011 U	0.00000038 J	0.00000089 U	0.000001 U	0.0000011 U	0.00000087 U	0.000000423 U	0.000000358 U	0.0000004 U	0.000000351 U	0.00000033 U	0.000000626	0.000000717	0.000000594 J	0.000000316 J	0.000000331 J	0.000000333 U	0.000000331 U	0.000000456 J	0.00000039 J	0.000000322 U	0.000000358 J	0.00000118	0.00000174 J-	0.00000147 J-	0.000000893 UJ	0.000000329 U	0.000000335 U	0.000000331 U	0.000000331 U	0.000000331 U	0.000000324 U	0.000000329 U	0.000000231 J	0.00000033 U	0.000000306 U	0.000000329 U	0.000000327 U	0.00000033 U	0.000000147 J	0.000000489 U	0.000000493 U	0.000000422 UJ	0.00000036 U	0.000000334 UJ	0.00000113 UJ	0.000000325 U	0.000000225 U	0.00000035 U	0.000000326 U	0.000000333 U	0.000000331 U	0.000000532 U	0.000000336 U	0.000000417 U	0.000000333 U	0.000000332 U	0.000000333 U	0.000000321 U	0.000000333 U	0.000000496 UJ	0.000000427 UJ	0.000000711 U	0.000000751 U
2,3,7,8-TCDF (51207-31-9)	0.00000024 J	0.00000033 J	0.000001 U	0.00000022 J	0.000001 U	0.00000099 U	0.0000011 U	0.0000015 U	0.0000011 U	0.00000034 J	0.00000034 J	0.00000066 U	0.0000032 U	0.00000015 J	0.00000078 U	0.00000016	0.00000081 U	0.00000087 U	0.00000056	0.00000024 J	0.0000004 J	0.00000048 J	0.0000013 U	0.00000082 U	0.00000056 J	0.00000027 J	0.00000021 J	0.00000023 J	0.00000029 J	0.00000072 U	0.00000071 U	0.0000011 U	0.00000078 U	0.00000026 J	0.00000047 J	0.00000054 J	0.00000053 J	0.000000793	0.000000772	0.000000739 J	0.000000611	0.000000801 J	0.000000796 J	0.000000742 J	0.000000843	0.00000161	0.000000918	0.00000112 J	0.000000849	0.00000199	0.00000162	0.000000296 J	0.000000423	0.00000499	0.00000668 J-	0.00000723 J-	0.000000611 UJ	0.000000329 U	0.000000567 J	0.000000338	0.000000331 U	0.000000285 J	0.000000238 J	0.000000329 U	0.000000647 J	0.00000059	0.000000306 U	0.000000329 U	0.000000327 U	0.000000401 J	0.000000273 J	0.000000821 J	0.00000199	0.000000346 UJ	0.00000036 U	0.000000334 UJ	0.000000769 UJ	0.0000815 U	0.000000332 U	0.000000328 U	0.000000345 J	0.000000325 J	0.00000131	0.00000143 J	0.000001 J	0.00000088	0.000000523	0.000000505	0.000000259 J	0.000000321 U	0.000000557 J	0.00000113 J-	0.00000104 J-	0.00000037 J	0.000000402 J
OCDD (3268-87-9)	0.0011	0.0019	0.00025	0.00041	0.000013	0.0000099 U	0.000011 U	0.00012	0.0001	0.0054	0.0055	0.00005	0.000029 J	0.000079 J	0.000028	0.0001	0.00014	0.00021 J+	0.000049	0.00002	0.00024	0.00019	0.0021 J-	0.00073 J-	0.00054	0.00039 J-	0.00015 J-	0.00084 J-	0.00051 J-	0.0000072 U	0.0000071 U	0.000031 J-	0.000019 J-	0.00019	0.0044	0.008	0.0018	0.000586	0.000609	0.000605	0.0000777	0.000104	0.00335	0.00506	0.00283	0.00113	0.00105	0.00093	0.00102	0.0019 J-	0.00119	0.00103	0.00202	0.0011	0.00148 J-	0.00141 J-	0.000532 J-	0.000627 J-	0.0000745	0.0000312	0.000561	0.000577	0.000204	0.000142	0.000638	0.000563	0.0000607	0.000103	0.0000837	0.0000832	0.0000827	0.000284	0.000607 J-	0.000735 J-	0.000524 J+	0.000392 J-	0.00068 J-	0.000264	0.000000332	0.000175	0.000185	0.000128 J-	0.000994	0.0011	0.000654	0.000547 J	0.000197	0.000183	0.00347	0.00432	0.000322	0.000417 J-	0.000545 J-	0.00339	0.00305
OCDF (39001-02-0)	0.0000023 J	0.0000049 J	0.0000037 J	0.0000044 J	0.0000015 J	0.0000099 U	0.000011 U	0.0000083 J	0.0000076 J	0.00032	0.00031	0.0000028	0.0000015 J	0.0000049 J	0.0000018	0.0000067	0.0000081 U	0.0000087 U	0.0000029	0.0000015	0.0000052 J	0.0000054 J	0.000024 J	0.000016	0.000018	0.000012	0.0000046 J	0.0000024 J	0.000003 J	0.0000072 U	0.0000071 U	0.000011 U	0.0000078 U	0.0000086 J	0.00036	0.00071	0.000084	0.0000735	0.0000782	0.0000803	0.00000628	0.00000861	0.00016	0.000341 J	0.000138 J	0.0000185	0.0000112	0.0000389	0.0000276	0.0000787	0.0000505	0.0000104	0.0000262	0.0000816	0.000109 J-	0.00011 J-	0.00000307 J-	0.00000317 J	0.00000497	0.00000186 J	0.00000528	0.00000453 J	0.00000746	0.00000233 J	0.0000593	0.000063	0.000000981 J	0.00000125 J	0.00000125 J	0.00000793	0.000007	0.0000272	0.0000628 J-	0.000012 J-	0.0000109	0.0000112 J-	0.000025 J-	0.00000324 J	0.000191	0.00000481	0.0000186	0.0000127	0.0000932	0.000101	0.0000504	0.0000406	0.00000495	0.00000485	0.00000153 J	0.00000144 J	0.0000251	0.000032 J-	0.0000371 J-	0.000145	0.000122
Total TEQ	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	0.00000531	0.00000533	0.00000543	0.0000014	0.00000162	0.0000172	0.0000224	0.0000137	0.00000505	0.00000308	0.0000035	0.0000034	0.0000173	0.0000123	0.00000448	0.00000916	0.000016	0.0000211	0.00002	0.0000016 J	0.00000103	0.00000138	0.000000589	0.00000116	0.000001	0.00000095	0.000000373	0.0000057	0.00000458	0.000000367	0.000000465	0.000000452	0.0000011	0.00000114	0.00000394	0.00000825	0.00000163	0.00000103	0.0000021	0.00000279	0.000000627	0.00000173	0.0000116	0.00000284	0.00000111	0.00000677	0.00000875	0.00000634	0.00000523	0.00000111	0.00000101	0.00000246	0.00000232	0.00000279	0.00000408	0.00000367	0.00000771	0.0000066
Total-PCDD/DF-TEQ-MB (WHO2005)	0.0000011	0.0000018	0.0000011	0.0000013	0.00000043	0.00000041	0.00000044	0.00000079	0.00000057	0.0000085	0.0000079	0.00000059	0.00000032	0.00000077	0.00000054	0.0000012	0.0000004	0.00000047	0.0000012	0.00000053	0.000001	0.0000011	0.000014	0.0000074	0.0000035	0.0000018	0.000001	0.00000086	0.0000009	0.0000003	0.00000029	0.00000065	0.00000071	0.0000011	0.000016	0.000028	0.0000063	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Table updated September 22, 2025
J-qualifiers updated, results for 2,3,7,8-TCDD added, and all results are shown in non-scientific notation.

Data Qualifiers (aka Reporting Flags)
U	The analyte was not detected.
J	Indicates an estimated value.
UJ	The analyte was not detected, but the reporting limit may or may not be higher due to a bias identified during data validation.
J+	Indicates an estimated value that may be biased high
J-	Indicates an estimated value that may be biased low.
-	not populated, see other total calculation

*Treated as positive for toxic equivalence calculation

Terms Key

mg/kg	Milligrams per kilograms
in.	inches
CAS No	Chemical Abstracts Service

Notes

TTDF, TOTAL PCDD, and TEQ-WHO are numbers calculated from multiple measurements in the sample. These total numbers are used to evaluate dioxins and furans as groups of chemicals instead of individually.

The same date is visible in several columns on this sheet because on some days, samples were collected at multiple locations. Each set of columns covered by a date at the top, indicates a unique sample collection location.

Value in bold represents a detection of that analyte.

Norfolk Southern Data

Norfolk Southern Residential, Commercial and Agricultural Soil Sampling Results (xlsx) (128.45 KB)
