Exposure & Fate Assessment Screening Tool (E-FAST) Version 2.0 Computer-Based Training Introductory Course

Fate Assessment Screening Tool (E-FAST) Version 2.0 Computer-Based Training Introductory Course



PLEASE NOTE THIS COMPUTER-BASED TRAINING MODULE WAS DEVELOPED USING THE PREVIOUSLY RELEASED E-FAST2. THE NEW VERSION (2014) CONTAINS THE SAME USER INTERFACE, WORKFLOW AND CALCULATIONS, BUT WAS UPDATED TO BE COMPATIBLE WITH NEWER WINDOWS OPERATING SYSTEMS AND TO REFLECT THE LATEST EXPOSURE FACTORS FROM THE EXPOSURE FACTORS HANDBOOK (U.S. EPA, 2011).

This training course includes a series of slides which introduce the general concepts and methods used in E-FAST V2.0.

Screen Shot of Initial Page of E-FAST V2.0 Screen Shot of Initial Page of E-FAST

The images used herein (other than E-FAST V2.0 screen images) were obtained from IMSI's MasterClips and Master Photos Premium Image Collection, 1895 Franscisco Blvd. East, San Rafael, CA  94901-5506, USA

Course Syllabus:  What is in this Introductory Course?

Image of worker at computer

  • What is E-FAST V2.0?

  • Who Uses E-FAST V2.0?

  • What are the Components of E-FAST V2.0?

  • Availability of E-FAST V2.0

What is E-FAST V2.0?



E-FAST V2.0: (Exposure & Fate Assessment Screening Tool) is a screening level tool that estimates human exposure as well as aquatic ecosystem exposure to and risk from the release of chemicals to the environment.


Image of fishIndustrial Facility

E-FAST V2.0 estimates exposure and risk from such areas as industrial/commercial activities and the use and disposal of consumer products.




Note:  A glossary of selected terms has been included in this course.  If you are unsure of  the meaning of  a term, click on the highlighted words to access the glossary.  Use the "back" button on your browser to return to the point where you left off.

What is an Exposure Assessment?



An exposure assessment for a substance or chemical tells you:

  • Who is exposed (people? animals?

  • The route of exposure (breathing air? drinking water? skin contact?)Image of hand with question mark

  • How much exposure occurs (actual or estimated?)

  • How often the exposure occurs (once per day? once per week? over a lifetime?)

What is a Screening Level Tool?



E-FAST V2.0 is a screening level tool that can be used to fill in data gaps.

E-FAST V2.0:

  • Uses readily available data

  • Requires minimal data entry

  • What are the Components of E-FAST V2.0?

  • Is designed to yield conservative, protective estimates

E-FAST V2.0 requires minimal data entry



Estimating exposures isn't easy. Screening tools are helpful in filling in data gaps and use readily available data, assumptions, and exposure factors.

E-FAST V2.0 contains exposure factors based on over 20 years of EPA experience in estimating exposure.  Users can add more precise data if desired.  As with any model, selecting the appropriate input values is of critical importance.

Hand holding help sign

The Bottom Line is: Screening level tools can be helpful in filling data gaps.

E-FAST V2.0 quickly screens exposure concerns



E-FAST V2.0 can be quickly applied to exposure scenarios because of its organizational structure and programming

Introduction Screen for E-FAST

E-FAST V2.0 contains several default exposure scenarios

E-FAST V2.0 also includes several databases containing much of EPA's experience in evaluating exposures

E-FAST V2.0 is designed to provide conservative estimates of exposure:



E-FAST V2.0 is a screening tool and was designed to purposefully err on the side of safety by estimating higher than expected exposures. You should gather available data and confirm that the result from E-FAST V2.0 is conservative for your specific exposure assessment.  Before using E-FAST V2.0, you should become E-FAST V2.0 is a screening tool and was designed to purposefully err on the side of safety by estimating higher than expected exposures. You should gather available data and confirm that the result from E-FAST V2.0 is conservative for your specific exposure assessment.  Before using E-FAST V2.0, you should become familiar with the individual models used in the tool and their limitations and underlying assumptions.  This information can be found in the help screens accessible from within E-FAST V2.0, and in the documentation manual.  Safety First sign

E-FAST V2.0 allows you to screen out substances with a reasonable certainty that they are of lower concern.  More details on the relationship between exposure and risk are given later in this training course.

When is it inappropriate to use E-FAST V2.0?



When is it inappropriate to use E-FAST V2.0? Cartoon image of man holding up hand

  • Sufficient data are available for a precise exposure and/or risk assessment
  • A detailed risk assessment is required for legal, regulatory, or other purposes
  • The model assumptions and/or limitations of E-FAST V2.0 suggest that it is inappropriate for the intended use

Who Uses E-FAST V2.0?


  • EPA Program offices: for voluntary and regulatory purposes
  • Companies: streamline operations, reduce or prevent pollution, and develop cost effective solutions to environmental challenges
  • Federal, state, and local government officials: to determine chemical issues of greatest concern in their communities and jurisdictions
  • Researchers , students, public groups, and consultants: to learn more about chemicals that pose potential risks to human health and the environment
  • Communities: to better understand and interpret local environmental issues

Physical/Chemical/Fate Data Entry Screen



This screen is accessible from the main E-FAST V2.0 Introductory screen. Data entered here will be used in all of the modules of E-FAST V2.0. After entering the required data, click the button at the bottom center of the screen to return to the introductory screen.Introductory page to E-FAST V2.0

The Modules of E-FAST V2.0


  • General Population and Ecological Exposure from Industrial Releases
  • General Population Exposure from "Down-the-Drain" Releases of Consumer Products
  • Consumer Exposure Pathway
  • Probabilistic Dilution Model (PDM)
Introductory page to E-FAST

General Population and Ecological Exposure from Industrial Releases

  Screen Shot of Initial Page of E-FAST V2.0



General Population Assessments From Industrial Releases:


  • Releases to WaterImage of fish
  • Releases to Land
    • Direct landfill disposal of chemicals
    • Landfill disposal of chemicals in sewage sludge
  • Releases to AirImage of landfill
    • Fugitive releases
    • Stack releases

E-FAST V2.0 Scenario for Releases to Surface Waters (Rivers & Streams)



Human Exposure:

  • E-FAST V2.0 estimates site specific drinking water exposure from industrial discharges of substances to a known location on a river or stream.
  • E-FAST V2.0 estimates human exposure of eating fish exposed to industrial discharges of substances to a known Mountain and Riverlocation on a river or stream.
  • Human exposure is estimated for potential acute (ADR) and cancer (LADD) endpoints.

Ecological Exposure/Risk:

  • E-FAST V2.0 uses a site-specific technique to estimate the concentrations of a substance in surface water.  This estimate can be compared to a concentration of concern to assess aquatic risk for that substance.
  • E-FAST V2.0 estimates the number of days per year the concentration of concern is potentially exceeded by the estimated concentration in a stream/river.
  • E-FAST V2.0 identifies endangered animal and plant species in the proximity of the discharge area.

E-FAST V2.0 Release Scenario to Surface Waters (Lakes, Bays, Estuaries & Oceans)



Human Exposure:

  • E-FAST V2.0 estimates human exposure of eating fish exposed to industrial discharges of substances to a known location on a lake, bay, estuary or other "still water" site. Image of bay with aquatic life
  • Human exposure is estimated for potential acute (ADR) and cancer (LADD) endpoints.

Ecological Exposure/Risk:


  • E-FAST V2.0 uses a site-specific technique to estimate the concentrations of a substance in surface water.  This estimate can be compared to a concentration of concern to assess aquatic risk for that substance.
  • E-FAST V2.0 identifies endangered animal and plant species in the proximity of the discharge area.

E-FAST V2.0 Release Scenario to Surface Waters at an Unspecified Location



Human Exposure:

Ecological Exposure/Risk:

  • Uses a generic SIC code technique to estimate the concentrations of a substance in surface water. This estimate can be compared to a concentration of concern to assess aquatic risk for that substance.Image of bay with aquatic life
  • E-FAST V2.0 estimates the number of days per year the concentration of concern is potentially exceeded by the estimated concentration in a stream/river.

E-FAST V2.0 Landfill Release Scenario



Human Exposure:

  • E-FAST V2.0 estimates drinking groundwater exposure from disposal of industrial wastes or sludge to a generic Image of a landfilllandfill.
  • Human exposure is estimated for cancer (LADD) endpoints.

E-FAST V2.0 Air Release Scenario (Stack Release)



This scenario is designed to estimate inhalation exposures downwind of a stack releasing to the atmosphere, e.g., after incineration.  Factors considered include stack and facility parameters, and meteorological and terrain information. Image of smokestack

Human exposure is estimated for potential acute (ADR) and cancer (LADD) endpoints.

E-FAST V2.0 Air Release Scenario (Fugitive Release)



This scenario is designed to estimate inhalation exposures from fugitive releases. A fugitive release occurs when a substance is released to the air from such places as pipe connections, tanks and loading/unloading operations. Image of a tank pressure gauge

Human exposure is estimated for potential acute (ADR) and cancer (LADD) endpoints.

Down The Drain Exposure



Screen Shot of Initial Page of E-FAST V2.0 System

How does E-FAST V2.0 screen exposure to humans and the aquatic ecosystem from "down-the-drain" releases of consumer products?



Exposure from residential releases of consumer products:Image of bay with aquatic life



E-FAST V2.0 Scenario for Releases of "Down-the-Drain" Consumer Products from a Generic Residence



Human Exposure:

  • This scenario estimates drinking water and fish ingestion exposures resulting from disposal of consumer products at a generic residence through a generic public sewer system.Image of sink
  • Human exposure is estimated for potential acute (ADR) and cancer (LADD) endpoints

Ecological Exposure/Risk:


  • E-FAST V2.0 estimates the concentration of a substance in surface water and compares it to a concentration of concern in order to assess aquatic risk for that substance.Image of bay with aquatic life
  • E-FAST V2.0 estimates the number of days per year the concentration of concern is potentially exceeded by the concentration in a generic stream or river.

Consumer Exposure Pathway



Screen Shot of Initial Page of E-FAST V2.0

How Does E-FAST V2.0 screen exposure from the use of consumer products?



Dermal Exposure:


  • Pre-set scenarios based on EPA experience
  • User-defined scenarios

Inhalation Exposure:


  • Pre-set scenarios based on EPA experience Man with mask pouring liquid
  • User-defined scenarios

E-FAST V2.0 Scenarios for Consumer Products - Skin (Dermal) Exposure



Users may run the model with a user-defined scenario if the product of concern or other input parameters differ from these default scenarios:

  • Products applied to a surface (latex paint, general purpose cleaner)paint can and brush
  • Products added to water (laundry detergent) washing machine
  • Products with direct skin contact (used motor oil, bar soap)

mechanic



E-FAST V2.0 Scenarios for Consumer Products - Inhalation Exposure



Users may run the model with a user-defined scenario if the product of concern or other input parameters differ from these default scenarios:

  • Products applied to a surface (latex paint, general purpose cleaner, fabric protector)
  • Products added to water (laundry detergent)paint can and brush
  • Products sprayed on surfaces (spray paint)
  • Products released to the environment (air fresheners)washing machine

Probabilistic Dilution Model (PDM)

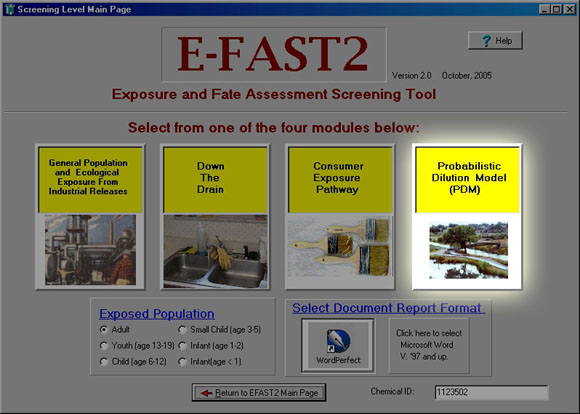

Screen Shot of Initial Page of E-FAST V2.0

Probabilistic Dilution Model (PDM)



Aquatic Ecosystem Exposure/Risk Pathway



E-FAST V2.0 Scenario for ecological exposure/risk from surface water releases (site-specific)



Uses a site specific technique to estimate the concentrations of a substance in surface water.  This estimate can be compared to a concentration of concern. This comparison of estimated concentration to concentration of concern is used to assess aquatic risk for that substance. Image of bay with aquatic life

E-FAST V2.0 estimates the days per year the concentration of concern is potentially exceeded by the estimated concentration in a stream/river.

Ecological exposure/risk from surface water releases (SIC code)



Uses a generic SIC code technique to estimate the concentrations of a substance in surface water. This estimate can be compared to a concentration of concern. This comparison of estimated concentration to concentration of concernis used to assess aquatic risk for that substance.Image of bay with aquatic life

E-FAST V2.0 estimates the days per year the concentration of concern is potentially exceeded by the estimated concentration in a stream/river

How can the exposure assessment results be used?


  • Quickly evaluate and prioritize chemicals based on exposure
  • Separate chemicals into different levels of concern to help decide whether to devote additional resources for advanced exposure assessments, collection of monitoring data or use of more complex models
  • Use readily available data for exposure assessment.  Whenever possible, reliable measured data is preferred over model estimates

What is Risk?

    Risk =  (Exposure)  x  (Hazard)

Exposure and hazard assessments are combined into a risk assessment which is used to evaluate whether there is a potential risk (probability of an adverse effect). E-FAST V2.0 provides an entire screening level risk assessment for Image of mousetrapaquatic ecosystems.  However, E-FAST V2.0 only provides the exposure, but not the hazard, component for assessing potential risks to humans.

What is a Hazard Assessment and how is it used?



A hazard assessment provides an understanding of the potential for the chemical to cause adverse effects to humans, animal and plant life.

E-FAST V2.0 users should find appropriate hazard data from a variety of EPA sources (e.g. the Integrated Risk Information System (IRIS), the Agency for Toxic Substances and Disease Registry (ATSDR), the Hazardous Substances Data Bank (HSDB), or the Aquatic Information Retrieval Database (AQUIRE)) in conjunction with exposure data to evaluate risk.

System Availability



E-FAST V2.0 is now available through direct download on the Internet at EPA's website. Image of globe with connected users

If you have already downloaded E-FAST V2.0, please check for periodic updates of the system.

Need More Information?



Conrad Flessner at flessner.conrad@epa.gov

For Additional Information on E-FAST V2.0 including the E-FAST V2.0 documentation manual, check out the E-FAST V2.0 web siteInformation sign Image
