Climate Change Indicators

Climate Change Indicators: Lake Ice

Share Icon
Reddit Share Icon

This indicator measures the amount of time that ice is present on lakes in the United States.

  • Line graph showing the dates of the first freeze for nine U.S. lakes from 1850 to 2015.
    Download Data  Download Image



    This figure shows the “ice-on” date, or date of first freeze, for nine U.S. lakes. The data are available from as early as 1850 to 2015, depending on the lake, and have been smoothed using a nine-year moving average.

    Data source: Various organizations2
    Web update: August 2016

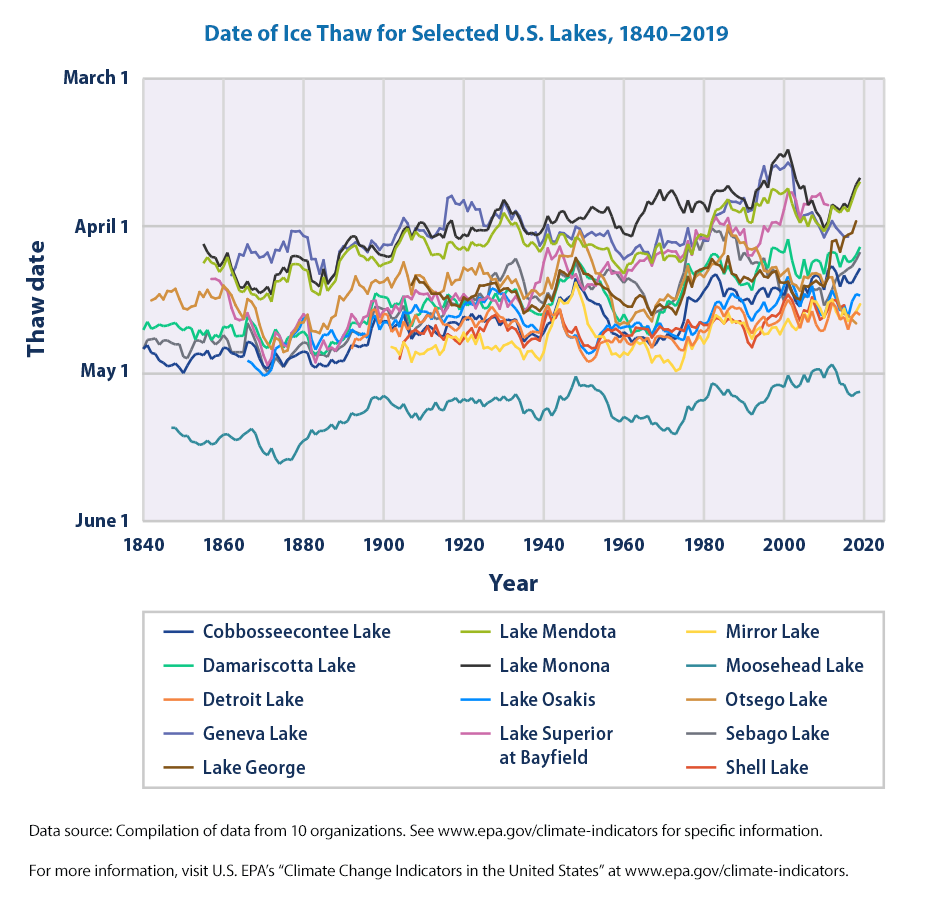

  • Line graph showing the timing of thawing at 14 U.S. lakes from 1850 to 2015.
    Download Data  Download Image



    This figure shows the “ice-off” date, or date of ice thawing and breakup, for 14 U.S. lakes. The data are available from as early as 1850 to 2015, depending on the lake, and have been smoothed using a nine-year moving average.

    Data source: Various organizations3
    Web update: August 2016

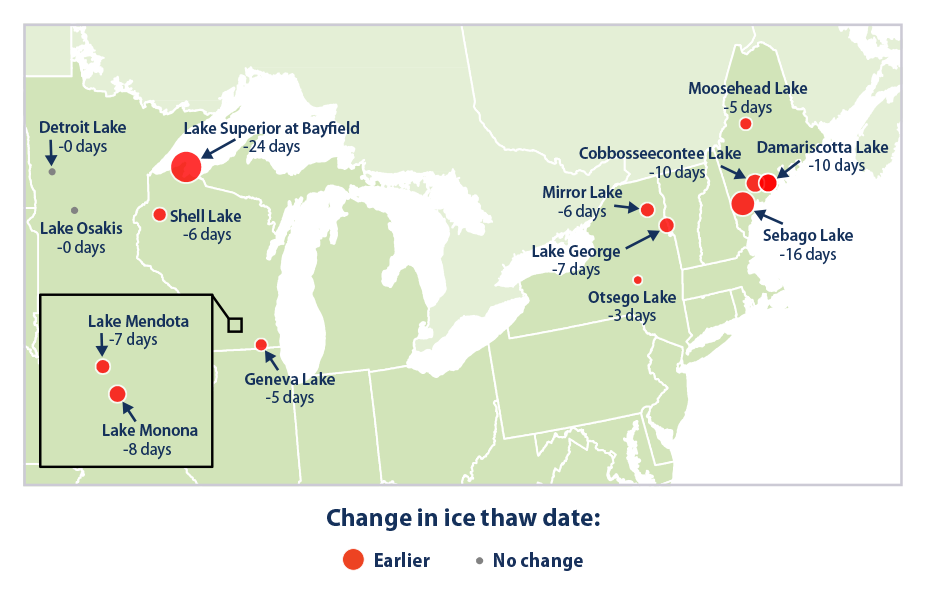

  • Map showing changes in the timing of thawing at 14 U.S. lakes between 1905 and 2015.
    Download Data  Download Image



    This figure shows the change in the “ice-off” date, or date of ice thawing and breakup, for 14 U.S. lakes during the period from 1905 to 2015. All of the lakes have red circles with negative numbers, which represent earlier thaw dates. Larger circles indicate larger changes.

    Data source: Various organizations4
    Web update: August 2016

Background

The formation of ice cover on lakes in the winter and its disappearance the following spring depends on climate factors such as air temperature, cloud cover, and wind. Conditions such as heavy rains or snowmelt in locations upstream or elsewhere in the watershed also affect the length of time a lake is frozen. Thus, ice formation and breakup dates are key indicators of climate change. If lakes remain frozen for longer periods, it can signify that the climate is cooling. Conversely, shorter periods of ice cover suggest a warming climate.

Changes in ice cover can affect the physical, chemical, and biological characteristics of a body of water. For example, ice influences heat and moisture transfers between a lake and the atmosphere. Reduced ice cover leads to increased evaporation and lower water levels, as well as an increase in water temperature and sunlight penetration. These changes, in turn, can affect plant and animal life cycles and the availability of suitable habitat. Additionally, ice cover affects the amount of heat that is reflected from the Earth’s surface. Exposed water will absorb and retain heat, making the Earth’s surface warmer, whereas an ice- and snow-covered lake will reflect more of the sun’s energy and absorb less. (For more information on ice and snow reflecting sunlight, see the Snow Cover indicator.)

The timing and duration of ice cover on lakes and other bodies of water can also affect society—particularly in relation to shipping and transportation, hydroelectric power generation, and fishing. The impacts can be positive or negative. For example, reduced ice cover on a large lake could extend the open-water shipping season but require vessels to reduce their cargo capacity, as increased evaporation leads to lower water levels.

About the Indicator

This indicator analyzes the dates at which lakes freeze and thaw. Freeze dates occur when a continuous and immobile ice cover forms over a body of water. Thaw dates occur when the ice cover breaks up and open water becomes extensive.

Freeze and thaw dates have been recorded through human visual observations for more than 150 years. The National Snow and Ice Data Center maintains a database with freeze and thaw observations from more than 700 lakes and rivers throughout the Northern Hemisphere. This indicator focuses on 14 lakes within the United States that have the longest and most complete historical records. The lakes of interest are located in Minnesota, Wisconsin, New York, and Maine.

Key Points

  • The lakes covered by this indicator are generally freezing later than they did in the past. Freeze dates have shifted later at a rate of roughly half a day to one-and-a-half days per decade (see Figure 1).
  • Thaw dates for most of these lakes show a trend toward earlier ice breakup in the spring (see Figure 2). Spring thaw dates have grown earlier by up to 24 days in the past 110 years (see Figure 3). All of these lakes were found to be thawing earlier in the year.
  • The changes in lake freeze and thaw dates shown here are consistent with other studies. For example, a broad study of lakes and rivers throughout the Northern Hemisphere found that since the mid-1800s, freeze dates have occurred later and thaw dates have occurred earlier, both shifting at an average rate of 0.8 days to one day per decade.1

Indicator Notes

Although there is a lengthy historical record of freeze and thaw dates for a much larger set of lakes and rivers, some records are incomplete, with breaks ranging from brief lapses to large gaps in data. This indicator is limited to 14 lakes with sufficiently complete historical records. The four Maine lakes and Lake Osakis only have data for ice thaw, so they do not appear in Figure 1 (first freeze date).

Data used in this indicator are all based on visual observations. While the procedures for making observations of lake ice are consistent over time, visual observations by individuals are open to some interpretation and can differ from one individual to the next. In addition, historical observations for lakes have typically been made from a particular spot on the shore, which might not be representative of lakes as a whole or comparable to satellite-based observations. Considerations for defining the thaw date are specific to each lake.

Data Sources

Data through 2004 for most lakes were obtained from the Global Lake and River Ice Phenology Database, which is maintained by the National Snow and Ice Data Center. These data are available at: http://nsidc.org/data/lake_river_ice. More recent data were obtained from state, local, and other organizations that collected or compiled the observations.


References

1. Benson, B.J., J.J. Magnuson, O.P. Jensen, V.M. Card, G. Hodgkins, J. Korhonen, D.M. Livingstone, K.M. Stewart, G.A. Weyhenmeyer, and N.G. Granin. 2012. Extreme events, trends, and variability in Northern Hemisphere lake-ice phenology (1855–2005). Climatic Change 112(2):299–323.

2. [see full list provided below]

3. [see full list provided below]

4. [see full list provided below]

Lake Ice: Citations for Figures 1, 2, and 3

Figure 1

Detroit Lake, Minnesota, 2006–2015
Minnesota Department of Natural Resources. Accessed June 2016. www.dnr.state.mn.us/ice_in.

Geneva Lake, Wisconsin, 2005–2015
Geneva Lake Environmental Agency Newsletters. Accessed June 2016. www.genevaonline.com/~glea/newsletters.php.

Lake George, New York, 2005–2014
Lake George Association. Accessed June 2016. www.lakegeorgeassociation.org/who-we-are/documents/Ice-In-Ice-Out2015.pdf.

Lake Mendota and Lake Monona, Wisconsin, 2011–2015
North Temperate Lakes Long Term Ecological Research site. Accessed June 2016. https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=ME and https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=MO.

Otsego Lake, New York, 2005–2014
State University of New York (SUNY) Oneonta Biological Field Station. Annual Reports. Accessed May 2015. www.oneonta.edu/academics/biofld/PUBS/ANNUAL/2013/29-Otsego-Ice-History-2014.pdf.

Shell Lake, Wisconsin, 2005–2015
Washburn County Clerk. 2016. Personal communication.

Mirror Lake, New York, 2016
Lake Placid News. Accessed June 2016. www.lakeplacidnews.com.

All other data
NSIDC (National Snow and Ice Data Center). 2014. Global lake and river ice phenology. Last updated January 2014. http://nsidc.org/data/lake_river_ice.

Figure 2

Cobbosseecontee Lake, Damariscotta Lake, Moosehead Lake, and Sebago Lake, Maine, 1800s–2008
Hodgkins, G.A. 2010. Historical ice-out dates for 29 lakes in New England, 1807–2008. U.S. Geological Survey Open-File Report 2010-1214.

Cobbosseecontee Lake, Damariscotta Lake, Moosehead Lake, and Sebago Lake, Maine, 2009–2015
U.S. Geological Survey. 2016. Personal communication.

Detroit Lake, Minnesota, 2006–2015
Lake Osakis, Minnesota, 1867–2015

Minnesota Department of Natural Resources. Accessed June 2016. www.dnr.state.mn.us/ice_out/index.html.

Geneva Lake, Wisconsin, 2005–2015
Geneva Lake Environmental Agency Newsletters. Accessed June 2016. www.genevaonline.com/~glea/newsletters.php.

Lake George, New York, 2005–2014
Lake George Association. Accessed June 2016. www.lakegeorgeassociation.org/who-we-are/documents/Ice-In-Ice-Out2015.pdf.

Lake Mendota and Lake Monona, Wisconsin, 2011–2015
North Temperate Lakes Long Term Ecological Research site. Accessed June 2016. https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=ME and https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=MO.

Mirror Lake, New York, 2007–2012
Adirondack Daily Enterprise. Accessed December 2013. www.adirondackdailyenterprise.com.

Mirror Lake, New York, 2013–2015
Lake Placid News. Accessed June 2016. www.lakeplacidnews.com.

Otsego Lake, New York, 2005–2014
State University of New York (SUNY) Oneonta Biological Field Station. Annual Reports. Accessed May 2015. www.oneonta.edu/academics/biofld/PUBS/ANNUAL/2013/29-Otsego-Ice-History-2014.pdf.

Shell Lake, Wisconsin, 2005–2015
Washburn County Clerk. 2016. Personal communication.

All other data
NSIDC (National Snow and Ice Data Center). 2014. Global lake and river ice phenology. Last updated January 2014. http://nsidc.org/data/lake_river_ice.

Figure 3

Cobbosseecontee Lake, Damariscotta Lake, Moosehead Lake, and Sebago Lake, Maine, 1905–2008
Hodgkins, G.A. 2010. Historical ice-out dates for 29 lakes in New England, 1807–2008. U.S. Geological Survey Open-File Report 2010-1214.

Cobbosseecontee Lake, Damariscotta Lake, Moosehead Lake, and Sebago Lake, Maine, 2009–2015
U.S. Geological Survey. 2016. Personal communication.

Detroit Lake, Minnesota, 2006–2015
Lake Osakis, Minnesota, 1905–2015

Minnesota Department of Natural Resources. Accessed June 2016. www.dnr.state.mn.us/ice_out/index.html.

Geneva Lake, Wisconsin, 2005–2015
Geneva Lake Environmental Agency Newsletters. Accessed June 2016. www.genevaonline.com/~glea/newsletters.php.

Lake George, New York, 2004–2015
Lake George Association. Accessed June 2016. www.lakegeorgeassociation.org/who-we-are/documents/Ice-In-Ice-Out2015.pdf.

Lake Mendota and Lake Monona, Wisconsin, 2011–2015
North Temperate Lakes Long Term Ecological Research site. Accessed June 2016. https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=ME and https://lter.limnology.wisc.edu/lakeinfo/ice-data?lakeid=MO.

Mirror Lake, New York, 2007–2012
Adirondack Daily Enterprise. Accessed December 2013. www.adirondackdailyenterprise.com.

Mirror Lake, New York, 2013–2015
Lake Placid News. Accessed June 2016. www.lakeplacidnews.com.

Otsego Lake, New York, 2005–2014
State University of New York (SUNY) Oneonta Biological Field Station. Annual Reports. Accessed May 2015. www.oneonta.edu/academics/biofld/PUBS/ANNUAL/2013/29-Otsego-Ice-History-2014.pdf.

Shell Lake, Wisconsin, 2005–2015
Washburn County Clerk. 2016. Personal communication.

All other data
NSIDC (National Snow and Ice Data Center). 2014. Global lake and river ice phenology. Last updated January 2014. http://nsidc.org/data/lake_river_ice.
