WRF-CMAQ Model

Overview

Air quality models are typically run in two different ways:

  1. Standalone – Archived output from a meteorological model is used to drive the air quality model.
  2. Coupled – The air quality and meteorological models are run simultaneously and the chemistry can impact the weather.

The latter “coupled” method is beneficial for studying important interactions between chemistry and weather. For example, aerosols can affect the amount of sunlight that reaches the surface, thus impacting temperature. Aerosols also have important impacts on cloud formation and cloud albedo.  CMAQ has been coupled to the Weather Research and Forecasting (WRF) model for this purpose.

In the WRF-CMAQ model (Wong et al., 2012), WRF and CMAQ are simultaneously integrated and information from CMAQ, like aerosol concentration, is passed into WRF so that the chemistry can impact the weather. Specifically, the WRF-CMAQ model gives users the options to pass aerosol optical properties to the radiation modules in WRF (aerosol direct radiative effects) and adjust the call frequency of WRF and CMAQ to balance the accuracy of the simulation with computational cost.

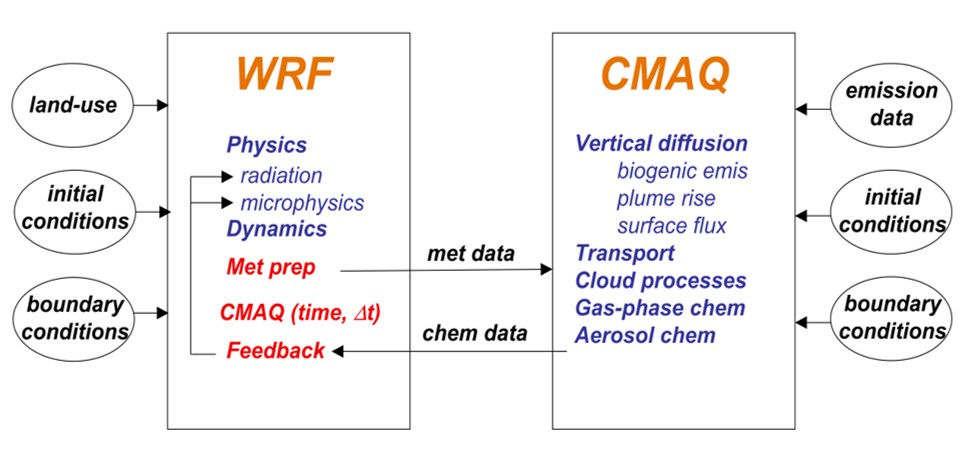

Schematic of information flow between the meteorology and chemistry modules in the coupled WRF-CMAQ model.
The WRF-CMAQ model passes vital atmospheric state and pollutant information back and forth between two interdependent modules.

Aerosol Direct Radiative Feedback Effects

The presence of aerosols impacts the amount of radiation reaching the surface, in turn altering the energy budget of the atmosphere. This is called the short-wave aerosol direct radiative effect. This has been implemented in the shortwave Rapid Radiative Transfer Model for General Circulation Models (RRTMG) radiation scheme in WRF, where aerosol optical properties such as extinction, single scattering albedo, and asymmetry factor, are calculated for 14 wavelength bands (Clough et al. 2005) using aerosol composition and size information simulated by CMAQ. The implementation utilizes the core-shell model where black carbon is treated as the center and the other substances comprise the shell. The aerosol optics calculations are based on Bohren and Huffman (1983).

Application and Evaluation

The aerosol optics calculations in the WRF-CMAQ model were assessed through comparison to measured optical properties of ambient aerosols made during the Carbonaceous Aerosol and Radiation Effects Study (CARES) as detailed by Gan et al. (2015a).

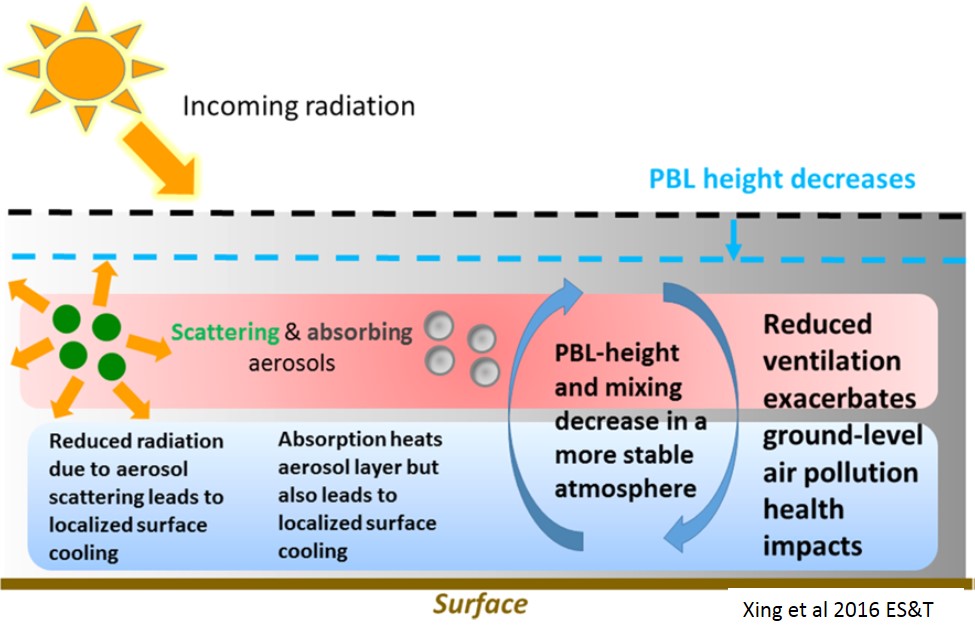

The dynamics of the planetary boundary layer are complex and have profound impacts on pollutant concentrations
The impacts of enhanced aerosol concentrations on surface-level meteorology are depicted here. There is a positive feedback of pollutant levels when concentrations are high enough and conditions are favorable.

The ability of the WRF-CMAQ system to reproduce historical trends in the tropospheric aerosol burden, aerosol optical depths, and clear-sky short wave radiation across the northern hemisphere and the U.S., has recently been assessed through extensive comparisons of long-term simulations of these quantities with observation-derived records from 1990 to 2010 (Xing et al. 2015a,b; Gan et al., 2015b). The model captured declining Aerosol Optical Depth (AOD) trends along with the corresponding decreased top-of-atmosphere (TOA) short-wave radiation (SWR), or  upwellingThe upward movement of an air mass in the atmosphere., and increased surface SWR, or downwellingThe downwelling movement of an air mass in the atmosphere., in the eastern US, Europe and the northern Atlantic for the period of 2000–2010. Estimates of the aerosol direct radiative effects (ADE) at TOA were comparable with those derived from measurements and, compared to general circulation models, the model exhibited better estimates of surface-aerosol direct radiative efficiency (Eτ) (Xing et al., 2015b).

Additionally, top-of-atmosphere clear-sky shortwave radiation during 2000-2010, inferred from the NASA Cloud and Earth’s Radiant Energy System (CERES) satellite retrievals show decreasing trends in the eastern U.S. and increasing trends in eastern China. The inclusion of ADE in WRF-CMAQ yielded better agreement with these contrasting trends suggesting that the trends in clear-sky radiation are influenced by trends in the tropospheric aerosol burden (Xing et al., 2015; Mathur et al., 2017).

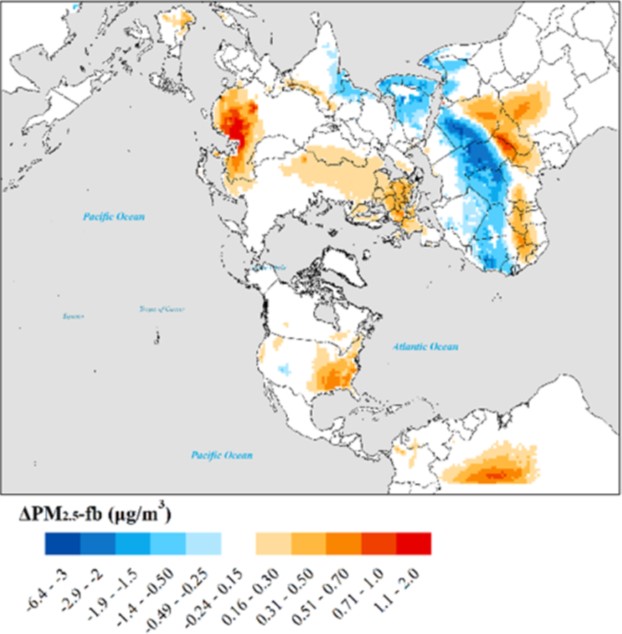

The concentrations of particles in the most polluted regions of the world.
The aerosol direct effect contributes to strong build-ups of pollutant concentrations in cities with the highest concentrations already. This map shows northern hemispheric distribution with heavy concentrations in polluted cities.

Impacts of aerosol cooling are not limited to changes in surface temperature, since variation in atmospheric dynamics caused by the increased stability can worsen local air quality and impact human health (Xing et al., 2016).

Hemispheric WRF-CMAQ model simulation over two decades (1990−2010) shows enhanced surface PM2.5 concentrations in the most polluted regions of the world due to the aerosol direct effect (Xing et al., 2016).

History and Latest Version

The first WRF-CMAQ system was released in 2012 and used WRFv3.3 and CMAQv5.0.  Starting from WRFv4.4 and CMAQv5.3.3, user can construct the coupled model with any version of WRF (v4.4 or later) and any version of CMAQ (v5.3.3 or later).  Information on the most current version of the WRF-CMAQ system can be found on the Access CMAQ Source Code page.
